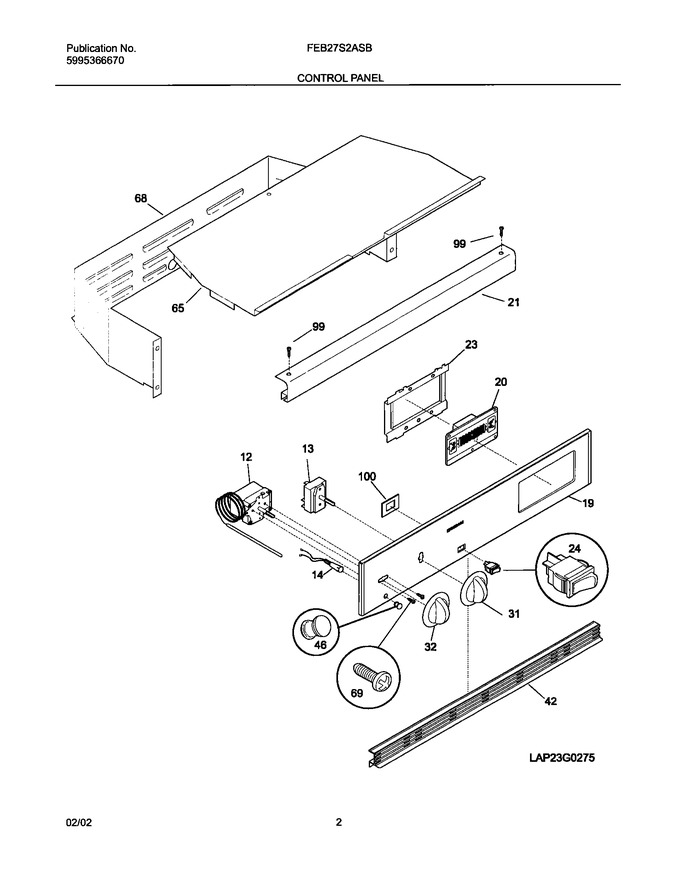

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318129618		Panel,control ,white		Appelez-nous	-
21	5303299529		Trim,canopy ,white ,top		Appelez-nous	-
23	318015721		Bracket-timer		Appelez-nous	-
31	318196639		Knob,oven Selector ,white				$ 29.77
32	318196641		Knob,oven Thermostat ,white		Appelez-nous	-
42	318026908		Trim-vent,white		Appelez-nous	-
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 22.91
65	318038802		Cover,control Housing		Appelez-nous	-
68	318182300		Housing-control				$ 48.47
69	5303288565		Screw,switch Mtg. ,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
99	5303316956		Screw,6-32 X 3/8 ,white ,(2)		Appelez-nous	-
100	318112200		Plate,mounting ,rocker Switch		Appelez-nous	-
F12	318059310		Thermostat,oven			Immediately	$ 374.73
F13	318057910		Switch-selector				$ 158.03
F14	3200297		Light-lamp/indicator		Appelez-nous	-
F20	318013926		Clock/timer,white		Appelez-nous	-
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
NI	5303320423		Rivet, (2)		Appelez-nous	-
NI	3201861		Screw,6 X 0.375				$ 0.76
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304414648		Screw,10-24 X 1/4   (Replaces: 5303308458)				$ 14.18
