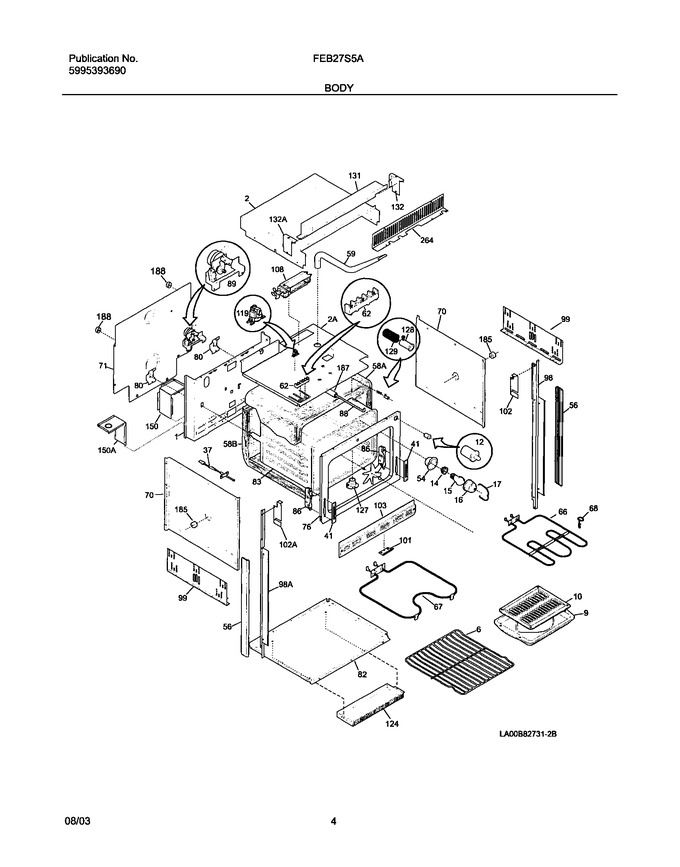

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Body
07 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318066703 | Wrapper,back And Sides |
|
- | |||||
| 2 | 318102001 | Shield-oven Top |
|
- | |||||
| 6 | 5303299719 | Rack-oven |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 14 | 316116400 | Receptacle,oven Light (Replaces: 318224000) |
|
Immediately | $ 56.10 | ||||
| 15 | 40A15 | Bulb/lamp,oven Light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Cover,oven Light ,glass (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 318222400 | Housing,oven Light |
|
$ 58.22 | |||||
| 56 | 5303298951 | Trim-bodyside, Black |
|
- | |||||
| 59 | 318072510 | Tube-oven Vent |
|
$ 157.80 | |||||
| 66 | 5303322963 | Element-broil |
|
- | |||||
| 68 | 5304403015 | Support,element Hanger |
|
$ 35.04 | |||||
| 70 | 5303300142 | Shield-insulation |
|
- | |||||
| 71 | 318071102 | Shield-rear Wall |
|
$ 46.88 | |||||
| 76 | 318056104 | Front-oven |
|
- | |||||
| 80 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 82 | 318071802 | Shield,oven Bottom |
|
- | |||||
| 83 | 318089517 | Liner,oven |
|
- | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 88 | 5303311222 | Rod-latch |
|
$ 129.19 | |||||
| 98 | 318029900 | Trim-side, Inner, Rh |
|
- | |||||
| 99 | 318055420 | Support-adjustable |
|
$ 44.73 | |||||
| 101 | 318039511 | Bracket-trim,black |
|
- | |||||
| 102 | 318070700 | Cap, Top Panel, Rh |
|
$ 26.20 | |||||
| 103 | 318028700 | Trim-base, Black |
|
$ 156.12 | |||||
| 124 | 318076904 | Box,vent |
|
- | |||||
| 127 | 318317100 | Adapter,vent Tube ,with Converter (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 131 | 318102204 | Cover,control Housing |
|
- | |||||
| 132 | 318101704 | End,cover ,rh ,control Housing |
|
- | |||||
| 150 | 318072205 | Bracket,support ,lh |
|
$ 72.35 | |||||
| 185 | 318531800 | Spacer-oven Shield (Replaces: 318014700) |
|
$ 12.76 | |||||
| 187 | 318013501 | Tube,latch Rod |
|
- | |||||
| 188 | 318531702 | Spacer (Replaces: 318014110) |
|
$ 9.93 | |||||
| 264 | 318143811 | Shield,wire |
|
- | |||||
| 2A | 318071501 | Shield-oven Top |
|
- | |||||
| 58A | 318133758 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318133749 | Insulation,oven Back |
|
- | |||||
| 98A | 318029901 | Trim-side, Inner, Lh |
|
- | |||||
| F102 | 318070701 | Cap, Top Panel, Lh |
|
$ 31.55 | |||||
| F103 | 318028800 | Trim,base ,black ,(under Counter) |
|
$ 125.16 | |||||
| F108 | 318073001 | Motor-fan |
|
- | |||||
| F119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| F12 | 318394803 | Switch,light (Replaces: 318089913) |
|
Immediately | $ 44.23 | ||||
| F132 | 318101705 | End,cover ,lh ,control Housing |
|
- | |||||
| F150 | 318072204 | Bracket,support ,rh |
|
- | |||||
| F37 | 316217002 | Probe,oven Temp |
|
Immediately | $ 61.23 | ||||
| F62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| F67 | 318255100 | Element-bake (Replaces: 5303299718) |
|
Immediately | $ 204.07 | ||||
| F89 | 318095956 | Motor,latch Assy ,w/brkt & Switch (Replaces: 318095936) |
|
Immediately | $ 143.83 | ||||
| NI | 5303302745 | Screw,10-16x1-1/8 ,square Drive |
|
$ 8.35 | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 318120711 | Switch |
|
$ 87.68 | |||||
| NI | 318078527 | Box & Wires Assy |
|
- | |||||
| NI | 3015722 | Clip-wire |
|
- |
