SELECT A DIAGRAM

01 - Cover

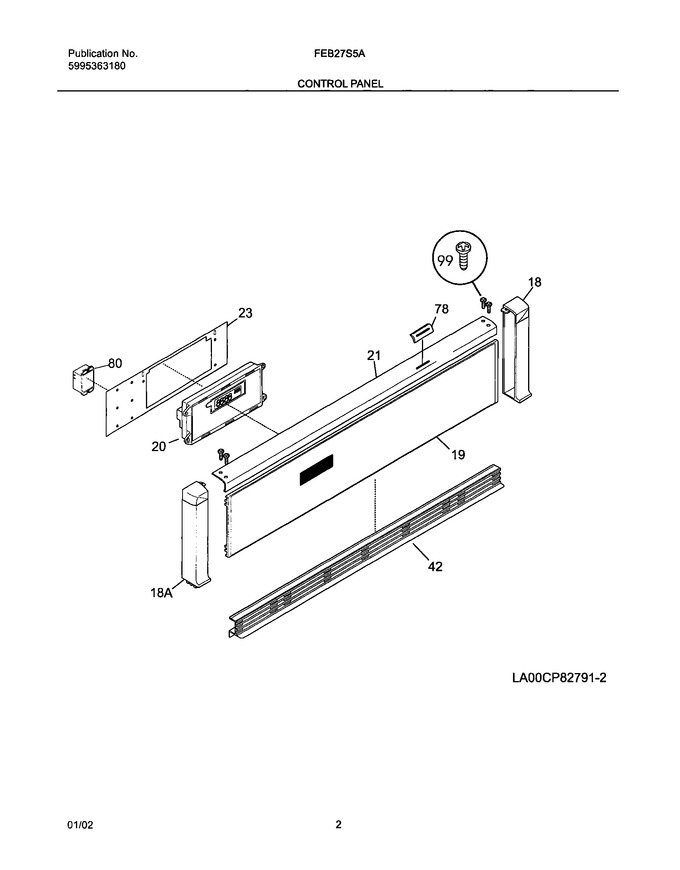

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5303311208		End Cap, White, Rh		Appelez-nous	-
19	318030032		Panel,control ,white		Appelez-nous	-
21	5303311212		Trim,canopy ,white ,top				$ 238.98
23	318111602		Bracket,clock & Relay		Appelez-nous	-
42	5303318709		Trim-vent, White		Appelez-nous	-
78	5303302394		Cover, Oven Vent, White		Appelez-nous	-
99	5303316956		Screw,6-32 X 3/8 ,white ,(2)		Appelez-nous	-
18A	5303311209		End Cap, White, Lh		Appelez-nous	-
F20	318010900		Clock/timer, Eoc		Appelez-nous	-
F80	318111500		Relay,convection ,oven Light ,(2)		Appelez-nous	-
NI	3201861		Screw,6 X 0.375				$ 0.76
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
