SELECT A DIAGRAM

01 - Cover


03 - Control Panel

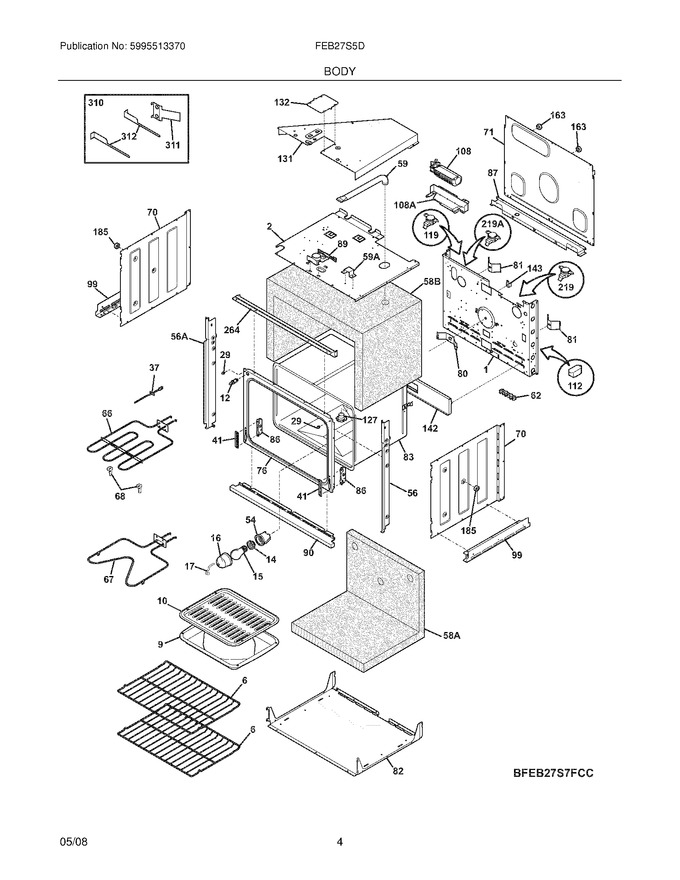

05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259213		Back,main		Appelez-nous	-
2	318258910		Shield,insulation ,upper		Appelez-nous	-
6	318345209		Rack,oven ,(3)		Appelez-nous	-
9	5303317977		Pan,broileroptional Access0ry		Appelez-nous	-
10	5303317976		Insert,broiler Panoptional Access0ry		Appelez-nous	-
12	316445501		Switch,oven Light ,door Frame				$ 90.01
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
29	318147430		Bumper,(2)   (Replaces: 318147411)				$ 18.95
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
56	318903702		Trim,side ,white ,rh		Appelez-nous	-
59	318072560		Duct,oven Vent		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
68	5304403015		Support,hanger ,(2) ,broil Element				$ 35.04
70	318259100		Shield,insulation ,sides ,(2)				$ 63.05
71	318260001		Panel,rear Box		Appelez-nous	-
76	318056222		Front,oven		Appelez-nous	-
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258710		Shield,insulation ,lower		Appelez-nous	-
83	318261502		Liner,oven Assy		Appelez-nous	-
86	318342400		Receptacle,hinge				$ 43.24
87	318260601		Bracket,cable Mtg.		Appelez-nous	-
90	318259710		Trim,oven Front ,white ,bottom				$ 121.91
99	318256201		Bracket,side ,bottom ,(2)				$ 56.70
127	318317100		Adapter Assembly,vent Tube ,w/converter				$ 75.13
131	318272901		Box,vent				$ 59.01
132	318003000		Plate,shield		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
163	318531703		Spacer,(2)		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	318257711		Trim,oven ,black ,front		Appelez-nous	-
310	5304440067		Cabinet Mounting Kit				$ 29.87
311	5304438005		· Screw,6 X 1 ,black				$ 9.93
311	318246010		Bracket,cabinet Mtg,(2)		Appelez-nous	-
312	318246703		Tool,cabinet Bracket ,lh				$ 12.13
312	318246702		Tool,cabinet Bracket ,rh				$ 12.13
56A	318903703		Trim,side ,white ,lh				$ 70.25
58A	318285060		Insulation,rear & Bottom ,oven Wrapper		Appelez-nous	-
58B	318285059		Insulation,top & Sides ,oven Wrapper		Appelez-nous	-
59A	318261600		Bracket,vent Tube		Appelez-nous	-
F108	318073028		Motor,blower			Immediately	$ 271.69
F108A	318251300		Bracket,fan Support				$ 54.60
F112	318112703		Relay				$ 66.99
F119	318004900		Switch,thermal				$ 60.25
F219	318003614		Thermostat,safety			Immediately	$ 84.61
F219	318003624		Thermostat,safety ,1.375`` Mtg ,105/120   (Replaces: 318003613)			Immediately	$ 23.39
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F66	318255606		Element,broil ,3400w   (Replaces: 318255601)			Immediately	$ 197.39
F67	318255103		Element,bake ,2300w				$ 194.20
F89	318261230		Motor,latch Assy   (Replaces: 318261205)				$ 129.80
FNI	5304506983		Box & Wires Assy   (Replaces: 318394441)				$ 133.47
FNI	318370375		Wiring Harness,main		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	5303324184		Screw,8-18 X 5/16 ,black ,(4)			Immediately	$ 14.18
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	318268099		Insulation,oven Light		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303323136		Screw-ground		Appelez-nous	-
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5303323139		Screw,10-24 X 0.906				$ 13.46

    View Diagram in Separate Window       Print Part List
