SELECT A DIAGRAM

01 - Cover

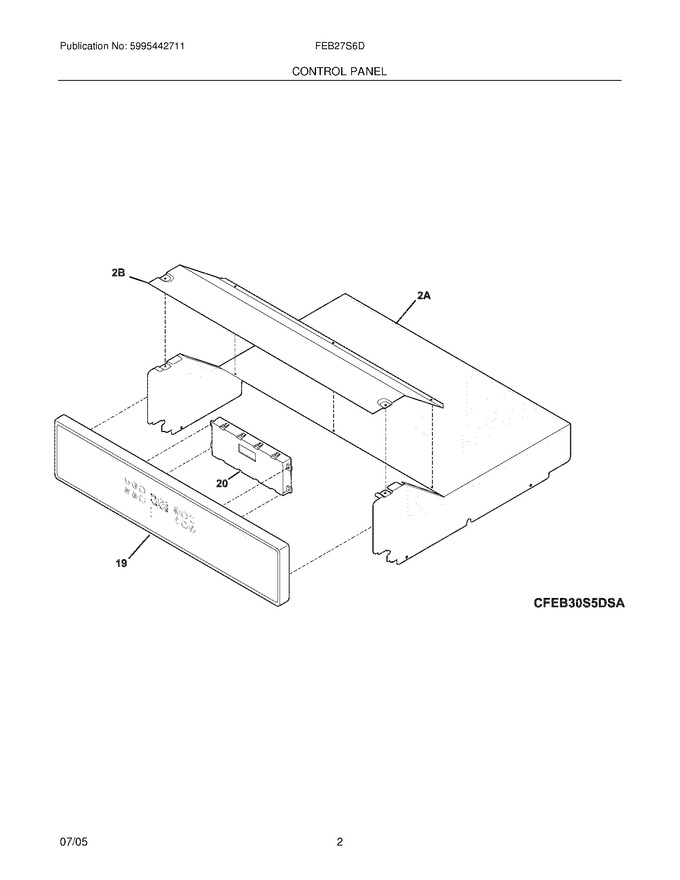

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318274404		Control Panel Assembly,glass ,bisque ,w/ Touch Pad		Appelez-nous	-
2A	318257301		Shield,oven Top		Appelez-nous	-
2B	318260101		Cover,box		Appelez-nous	-
F20	316418521		Clock/timer,electronic ,es350w2				$ 401.89
NI	316021107		Screw,hex Head ,8-32 ,silver		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
