Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 318259210 Back,main Appelez-nous -
2 318258910 Shield,insulation ,upper Appelez-nous -
6 318262602 Rack,oven ,(2) Appelez-nous -
9 5303317977 Pan,broiler Appelez-nous -
10 5303317976 Insert,broiler Pan Appelez-nous -
14 316116400 Receptacle,oven Light   (Replaces: 318224000) In-Stock Immediately $ 56.10

15 40A15 Bulb/lamp,oven Light   (Replaces: 5303013071) In-Stock Immediately $ 1.98

16 5304524341 Cover,oven Light ,glass   (Replaces: 3201911) In-Stock Immediately $ 14.18

17 5304400195 Retainer,light Cover Appelez-nous -
29 318147430 Bumper,(2)   (Replaces: 318147411) Special Order $ 18.95

41 5303310526 Cover-hinge Cutout Special Order $ 83.00

54 318222400 Housing,oven Light Special Order $ 58.22

56 318259902 Trim,side Filler ,white ,rh Appelez-nous -
59 318072560 Duct,oven Vent Appelez-nous -
62 5304409888 Terminal Block   (Replaces: 316056000) In-Stock Immediately $ 26.69

66 318255606 Element,broil ,3400w   (Replaces: 318255601) In-Stock Immediately $ 197.39

68 5304403015 Support,hanger ,(2) ,broil Element Special Order $ 35.04

70 318259100 Shield,insulation ,sides ,(2) Special Order $ 63.05

71 318260001 Panel,rear Box Appelez-nous -
76 318056222 Front,oven Appelez-nous -
80 5303320846 Plate,oven Mtg Special Order $ 51.50

81 318192400 Spring,oven Special Order $ 312.53

82 318258710 Shield,insulation ,lower Appelez-nous -
83 318261503 Liner,oven Assy Appelez-nous -
86 5303310524 Receptacle,hinge Appelez-nous -
87 318260601 Bracket,cable Mtg. Appelez-nous -
90 318259710 Trim,oven Front ,white ,bottom Special Order $ 121.91

99 318256200 Bracket,side ,bottom ,(2) Appelez-nous -
107 318219405 Cover,fan   (Replaces: 318219401) Special Order $ 82.69

109 318398302 Blade,fan   (Replaces: 316136400) In-Stock Immediately $ 29.11

111 316136600 Nut,fan Retainer In-Stock Immediately $ 19.13

126 318142100 Washer,motor ,rh ,convection Special Order $ 12.39

127 318317100 Adapter Assembly,vent Tube ,w/converter Special Order $ 75.13

131 318272900 Box,vent Appelez-nous -
132 318003000 Plate,shield Appelez-nous -
142 318123910 Deflector Appelez-nous -
143 318172904 Support,wire/glass Appelez-nous -
163 318014111 Spacer Appelez-nous -
185 318531800 Spacer,oven Shield ,(4)   (Replaces: 318014700) Special Order $ 12.76

263 316008401 Washer,fan Motor   (Replaces: 316136500) Special Order $ 11.34

264 318257711 Trim,oven ,black ,front Appelez-nous -
272 318249401 Tube,protector Special Order $ 6.23

310 5304440067 Cabinet Mounting Kit Special Order $ 29.87

311 318246010 Bracket,cabinet Mtg,(2) Appelez-nous -
312 318246703 Tool,cabinet Bracket ,lh Special Order $ 12.13

312 318246702 Tool,cabinet Bracket ,rh Special Order $ 12.13

56A 318259903 Trim,side Filler ,white ,lh Appelez-nous -
58A 318285060 Insulation,rear & Bottom ,oven Wrapper Appelez-nous -
58B 318285059 Insulation,top & Sides ,oven Wrapper Appelez-nous -
58D 318285058 Insulation,1/2`` Thick ,43 X 9.5 Appelez-nous -
59A 318261600 Bracket,vent Tube Appelez-nous -
F108 318073028 Motor,blower   (Replaces: 318073018) In-Stock Immediately $ 271.69

F108 318251300 Bracket,fan Support Special Order $ 54.60

F112 318112701 Relay Special Order $ 25.62

F119 318004900 Switch,thermal Special Order $ 60.25

F12 808136601 Switch,light   (Replaces: 318089917) In-Stock Immediately $ 44.04

F125 5304467898 Motor,fan   (Replaces: 316415800) In-Stock Immediately $ 225.67

F219 318003614 Thermostat,safety In-Stock Immediately $ 84.61

F219 318003624 Thermostat,safety   (Replaces: 318003613) In-Stock Immediately $ 23.39

F311 5304438005 ยท Screw,6 X 1 ,black Special Order $ 9.93

F37 316217002 Probe,oven Temp In-Stock Immediately $ 61.23

F67 318255103 Element,bake ,2300w Special Order $ 194.20

F89 318261230 Motor,latch Assy   (Replaces: 318261202) Special Order $ 129.80

NI 5304436875 Screw,8-18 X 1/2,black Special Order $ 14.41

NI 08016432 Screw,truss Head,8-18 X 0.375 Appelez-nous -
NI 5303324184 Screw,8-18 X 5/16 ,black ,(4) In-Stock Immediately $ 14.18

NI 5303300265 Screw,8-18 X 0.500 ,chrome ,(3) Special Order $ 15.17

NI 316205500 Nut-10-32   (Replaces: 5303323144) Special Order $ 11.34

NI 5303323139 Screw,10-24 X 0.906 Special Order $ 13.46

NI 318268099 Insulation,oven Light Appelez-nous -
NI 318078542 Box & Wires Assy Appelez-nous -
NI 318231736 Harness,wiring ,main Appelez-nous -
NI 5303323136 Screw-ground Appelez-nous -
NI 3201861 Screw,6 X 0.375 ,(4) Special Order $ 0.76

NI 134178901 Screw,8 X 0.500   (Replaces: 5303211311) Special Order $ 14.89

NI 5303323277 Screw (8-18x13/32) Special Order $ 8.66


    View Diagram in Separate Window     Print Icon   Print Part List

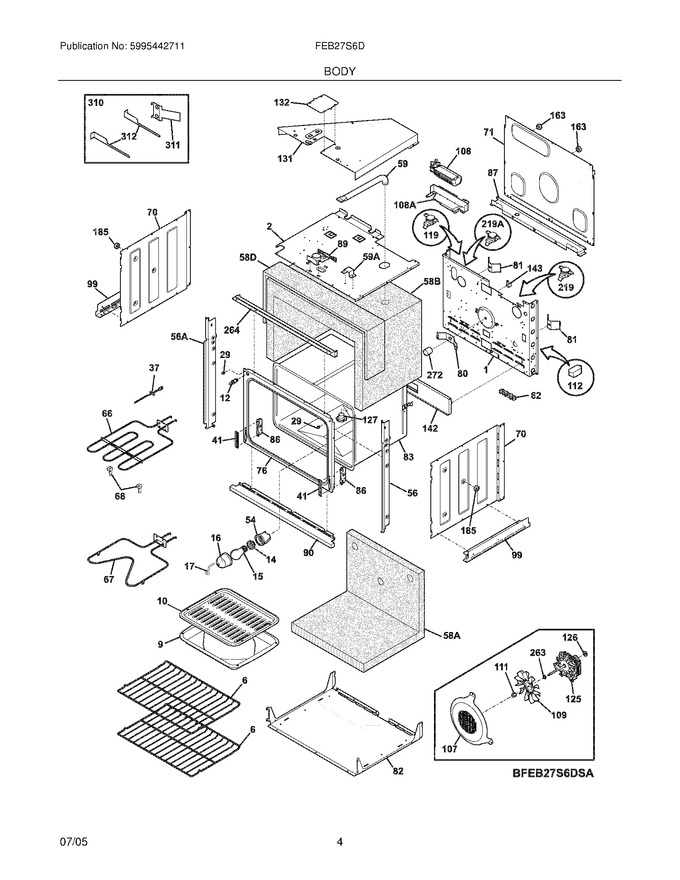

Diagram for FEB27S6DSB
