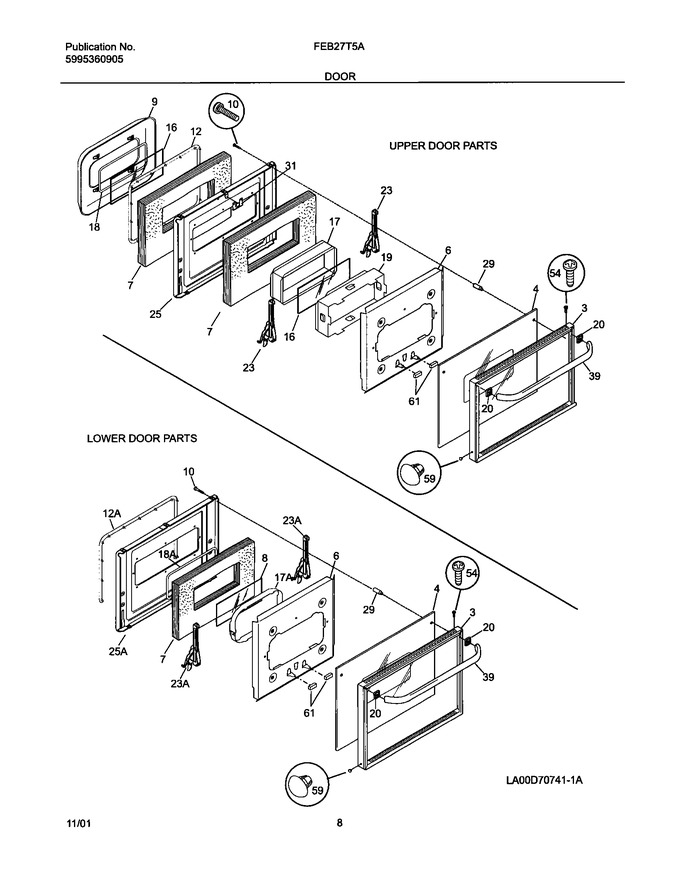

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026600		Trim,oven Door ,black		Appelez-nous	-
4	318210503		Glass,oven Door ,black ,outer		Appelez-nous	-
6	318073600		Shield-air Wash		Appelez-nous	-
7	318133740		Insulation,oven Door		Appelez-nous	-
8	318211700		Glass,oven Door ,inner		Appelez-nous	-
9	318038601		Liner-door Baffle,upper Oven		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
12	318178800		Seal-oven Door				$ 211.68
16	5303324250		Glass,door ,13 1/2 X 6 1/2				$ 184.54
17	318139100		Spacer-glass, Upper Oven		Appelez-nous	-
18	3016263		Seal-rope, Upper Oven				$ 66.15
19	318139201		Collar-glass Mtg		Appelez-nous	-
20	318014300		Spacer-handle, Black, (2)				$ 36.44
23	5303311259		Hinge,oven Door ,(2)		Appelez-nous	-
25	318048308		Liner-door Baffle		Appelez-nous	-
29	318014400		Spacer,door		Appelez-nous	-
31	318065102		Latch-door				$ 58.81
39	316091106		Handle-door,black ,oven		Appelez-nous	-
54	5303308456		Screw,8-18 X 0.531 ,black ,door Frame				$ 10.06
59	3202113		Plug,button		Appelez-nous	-
61	5303300414		Spacer, Cork & Rubber				$ 13.18
12A	5303316768		Seal-oven Door		Appelez-nous	-
17A	318162601		Support,glass		Appelez-nous	-
18A	318053204		Seal,rope ,lower Oven				$ 63.05
23A	318024702		Hinge,oven Door		Appelez-nous	-
25A	318156606		Liner,oven Door ,lower Door		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	5303316982		Foam Seal,(3)		Appelez-nous	-
