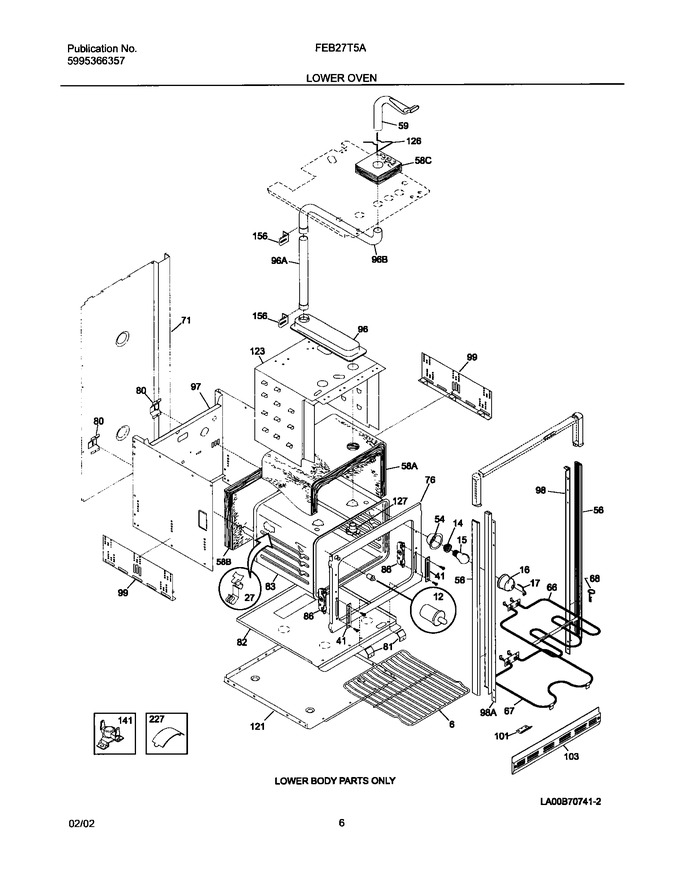

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 318345216 | Rack-oven (Replaces: 5303296873) |
|
$ 103.90 | |||||
| 16 | 5304524341 | Cover,oven Light ,glass (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 27 | 5303284616 | Clip,thermo Bulb Mtg |
|
$ 9.86 | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 5303300956 | Trim,bodyside ,black ,(2) |
|
- | |||||
| 59 | 318072507 | Tube,oven Vent |
|
- | |||||
| 66 | 5303322963 | Element-broil |
|
- | |||||
| 68 | 5304403015 | Support,element Hanger |
|
$ 35.04 | |||||
| 71 | 318071120 | Shield-rear Wall |
|
- | |||||
| 76 | 318124206 | Front-oven |
|
- | |||||
| 80 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 81 | 5303323710 | Bracket-oven |
|
- | |||||
| 82 | 5303304699 | Shield-insulation |
|
- | |||||
| 83 | 318089522 | Liner,oven |
|
- | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 96 | 5303317197 | Duct,oven Vent ,assy |
|
- | |||||
| 97 | 318066703 | Wrapper,back And Sides (Replaces: 318066702) |
|
- | |||||
| 98 | 318029334 | Trim,side ,inner,rh |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| 101 | 318039511 | Bracket-trim,black |
|
- | |||||
| 103 | 318028700 | Trim-base, Black |
|
$ 156.12 | |||||
| 121 | 318145002 | Wrapper,base |
|
- | |||||
| 123 | 318071442 | Shield-insulation,top & Sides |
|
- | |||||
| 126 | 3016303 | Clip,insulator |
|
- | |||||
| 127 | 318072800 | Adaptor Assy |
|
- | |||||
| 156 | 5303317198 | Bracket-oven Vent |
|
- | |||||
| 227 | 5303323955 | Clip-retainer |
|
- | |||||
| 58A | 318133710 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318133704 | Insulation,oven Back |
|
- | |||||
| 58C | 5303317714 | Insulation, Oven Vent |
|
- | |||||
| 96A | 3016325 | Duct,oven Vent ,center |
|
- | |||||
| 96B | 3016327 | Duct-vent Pipe |
|
- | |||||
| 98A | 318029335 | Trim,side ,inner,lh |
|
- | |||||
| F12 | 5301314211 | Switch,oven Light ,sm Door Frame |
|
$ 95.29 | |||||
| F14 | 316116400 | Receptacle, Oven Light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| F141 | 5303302280 | Thermostat-safety |
|
$ 203.24 | |||||
| F15 | 3201908 | Light,oven |
|
- | |||||
| F67 | 5303323865 | Element-bake |
|
- | |||||
| NI | 5303320505 | Box & Wires Assy |
|
- | |||||
| NI | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303302745 | Screw,10-16x1-1/8 ,square Drive |
|
$ 8.35 |
