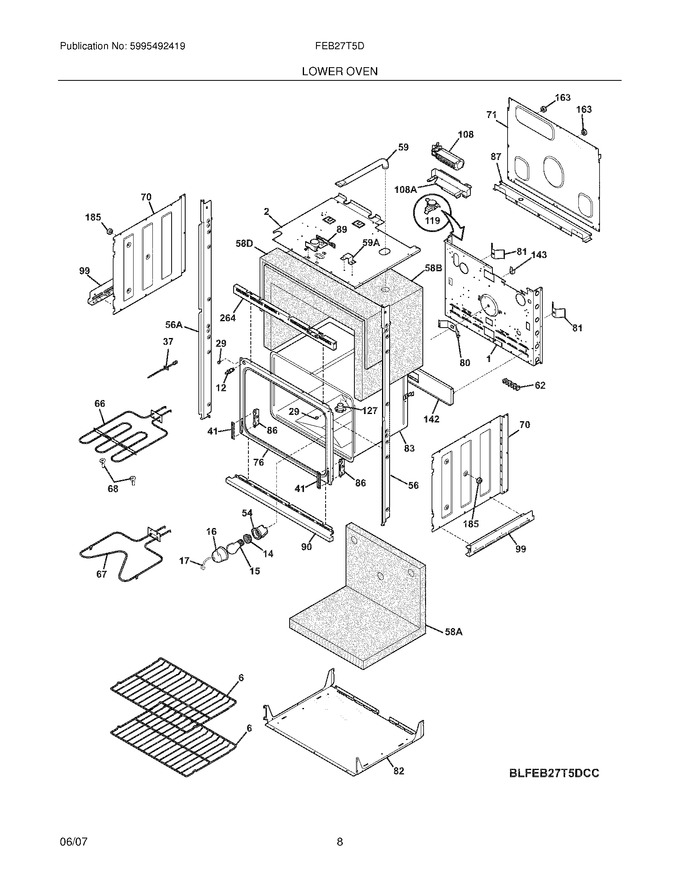

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259212		Back,main		Appelez-nous	-
2	318258910		Shield,insulation ,upper		Appelez-nous	-
6	318345209		Rack,oven ,(3)		Appelez-nous	-
12	316445501		Switch,oven Light ,door Frame				$ 90.01
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
29	318147430		Bumper,(2)   (Replaces: 318147411)				$ 18.95
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
56	318903602		Trim,side Filler ,white ,rh		Appelez-nous	-
59	318072560		Duct,oven Vent		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
66	318255606		Element,broil ,3400w   (Replaces: 318255601)			Immediately	$ 197.39
68	5304403015		Support,hanger ,(2) ,broil Element				$ 35.04
70	318259100		Shield,insulation ,sides ,(2)				$ 63.05
71	318260001		Panel,rear Box		Appelez-nous	-
76	318056222		Front,oven		Appelez-nous	-
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258710		Shield,insulation ,lower		Appelez-nous	-
83	318261502		Liner,oven Assy		Appelez-nous	-
86	318342400		Receptacle,hinge				$ 43.24
87	318260601		Bracket,cable Mtg.		Appelez-nous	-
90	318259710		Trim,oven Front ,white ,bottom				$ 121.91
99	318256200		Bracket,side ,bottom ,(2)		Appelez-nous	-
127	318317100		Adapter Assembly,vent Tube ,w/converter				$ 75.13
142	318123910		Deflector		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
163	318014111		Spacer		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(4)   (Replaces: 318014700)				$ 12.76
264	318257811		Trim,oven ,black ,front		Appelez-nous	-
56A	318903603		Trim,side Filler ,white ,lh		Appelez-nous	-
58A	318285060		Insulation,rear & Bottom ,oven Wrapper		Appelez-nous	-
58B	318285059		Insulation,top & Sides ,oven Wrapper		Appelez-nous	-
58D	318285058		Insulation,1/2`` Thick ,43 X 9.5		Appelez-nous	-
59A	318261600		Bracket,vent Tube		Appelez-nous	-
F108	318073028		Motor,blower   (Replaces: 318073018)			Immediately	$ 271.69
F108	318251300		Bracket,fan Support				$ 54.60
F119	318004900		Switch,thermal				$ 60.25
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F67	318255103		Element,bake ,2300w				$ 194.20
F89	318261229		Motor,latch Assy   (Replaces: 318261211)			Immediately	$ 93.62
NI	318340201		Bracket,insul. Panel		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	318268099		Insulation,oven Light		Appelez-nous	-
NI	5304506955		Box & Wires Assy   (Replaces: 318078543)				$ 174.43
NI	318370311		Wriring Harness,main		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	318199744		Wiring Harness,latch ,bas		Appelez-nous	-
NI	318199746		Wiring Harness,latch ,no Bas		Appelez-nous	-
NI	318231750		Harness,wiring ,main ,latch		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
