SELECT A DIAGRAM

01 - Cover

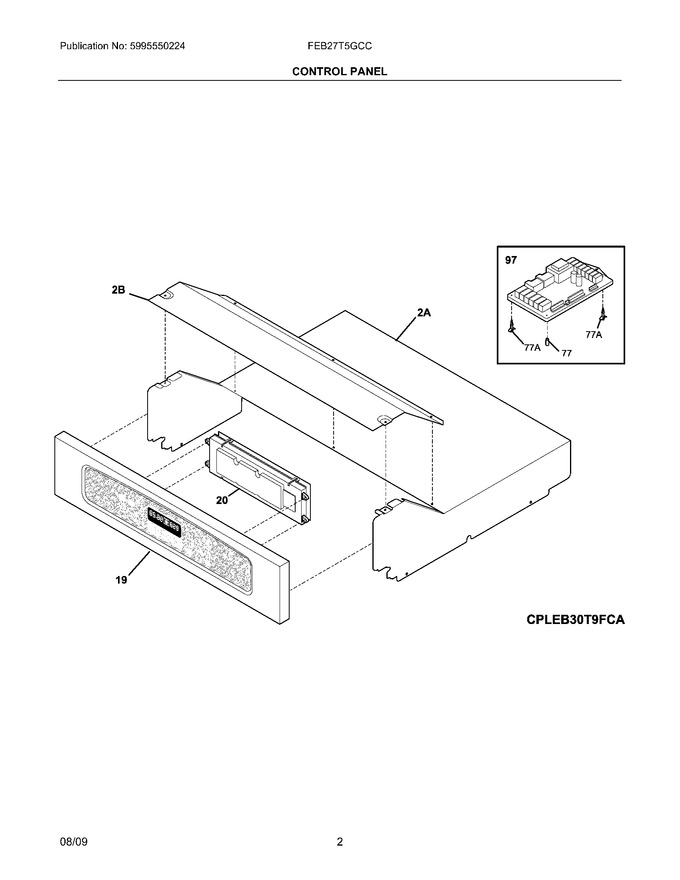

03 - Control Panel


05 - Upper Oven


07 - Lower Oven


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318271538		Control Panel Assembly,steel/glass ,stainless/black,w/touch Pad		Appelez-nous	-
77	316247900		Spacer,power Board				$ 44.65
97	316443913		Board,relay ,dual Oven				$ 370.44
2A	318257301		Shield,oven Top		Appelez-nous	-
2B	318260101		Cover,box		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
F20	316443830		Control,electronic ,es610w1 ,dual Oven		Appelez-nous	-
FNI	5304517327		Wiring Harness,timer ,to Relay Board   (Replaces: 318370374)				$ 83.42
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303311306		Screw,8-18 X 0.375 ,(6)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
