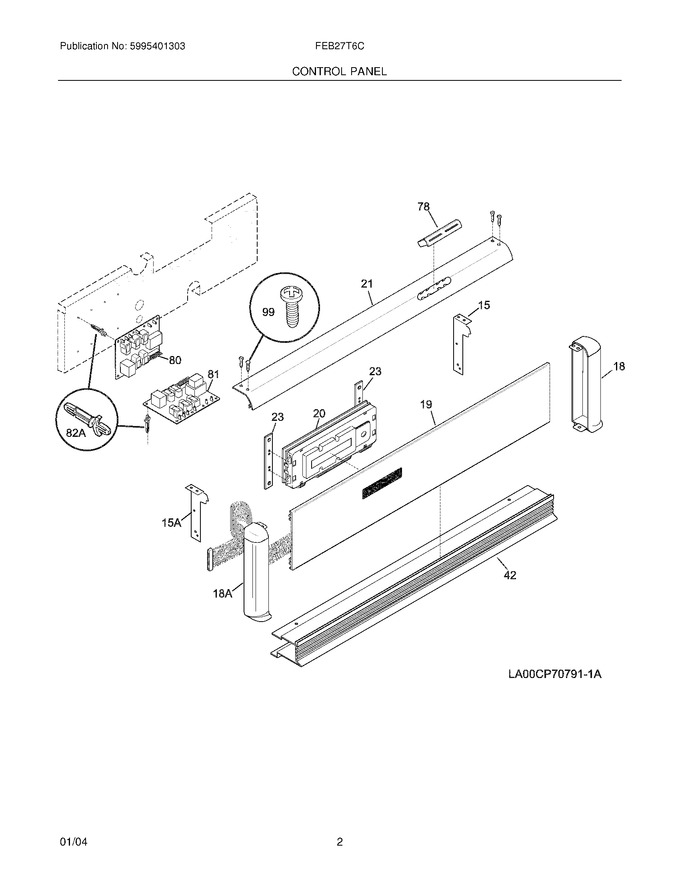

03 - Control Panel


05 - Upper Oven


07 - Lower Oven


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303302286		Support-backguard, Rh		Appelez-nous	-
18	5303311208		End Cap, White, Rh		Appelez-nous	-
19	318030042		Panel,control ,white ,w/membrane		Appelez-nous	-
21	5303302283		Trim,canopy ,white ,top		Appelez-nous	-
23	318015110		Bracket-clock Mtg		Appelez-nous	-
42	5303318709		Trim-vent, White		Appelez-nous	-
78	318036904		Cover,oven Vent ,white		Appelez-nous	-
99	5303316956		Screw,6-32 X 3/8 ,white ,(2)		Appelez-nous	-
15A	5303302287		Support-backguard, Lh		Appelez-nous	-
18A	5303311209		End Cap, White, Lh		Appelez-nous	-
82A	5303317199		Support, Snap-in, (3)				$ 36.75
F20	318010501		Clock/timer, Eoc				$ 666.75
F80	318022001		Relay Board			Immediately	$ 489.91
F81	318022002		Relay Board,w/transformer				$ 482.74
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
NI	5303320422		Screw,6-20 X 5/16 ,black ,(6)				$ 12.71
