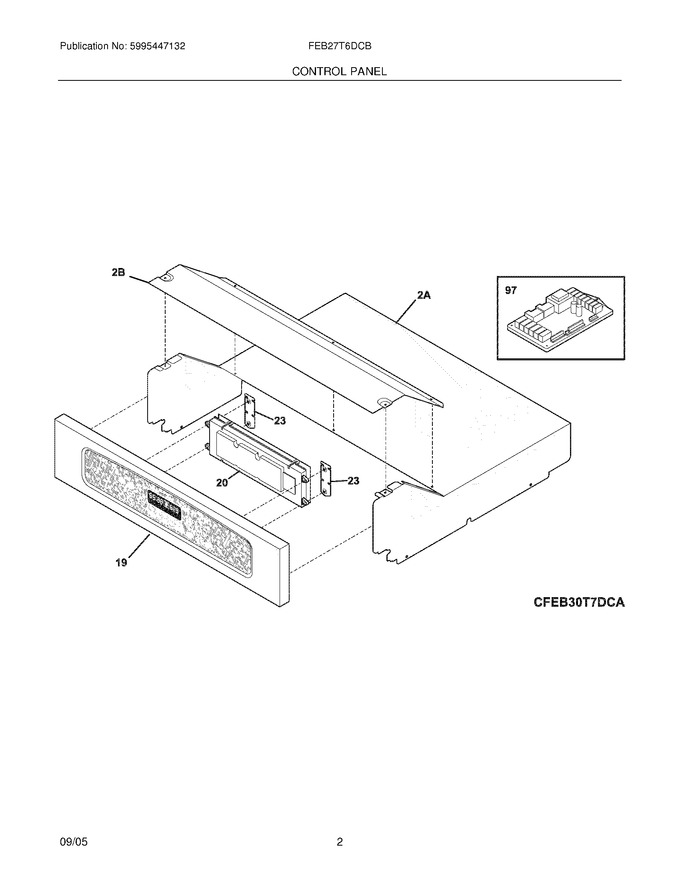

03 - Control Panel


05 - Upper Oven


07 - Lower Oven


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318271508		Control Panel Assembly,steel/glass ,stainless/black,w/touch Pad		Appelez-nous	-
23	318262900		Bracket,control Mtg. ,(2)		Appelez-nous	-
97	316429800		Board,relay ,dual Oven				$ 486.21
2A	318257301		Shield,oven Top		Appelez-nous	-
2B	318260102		Cover,box		Appelez-nous	-
F20	316429704		Control,electronic ,5800w2 ,dual Oven		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	316021107		Screw,hex Head ,8-32 ,silver		Appelez-nous	-
NI	318231704		Harness,wiring ,control-relay				$ 174.46
