SELECT A DIAGRAM

01 - Cover

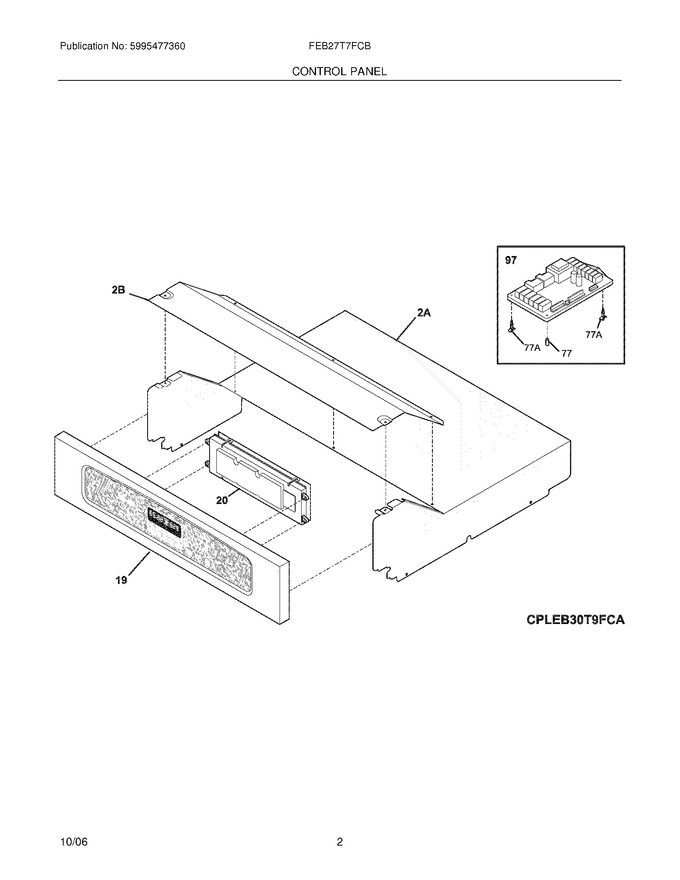

03 - Control Panel


05 - Upper Oven


07 - Lower Oven


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318271536		Control Panel Assembly,steel/glass ,stainless/black,w/touch Pad		Appelez-nous	-
77	316247900		Spacer,power Board ,(4)				$ 44.65
97	316443902		Board,relay ,dual Oven				$ 382.00
2A	318257301		Shield,oven Top		Appelez-nous	-
2B	318260101		Cover,box		Appelez-nous	-
77A	316114100		Spacer,(2)				$ 60.96
F20	316443801		Control,electronic ,es610w2 ,dual Oven		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318231751		Harness,wiring ,control-relay				$ 107.15
NI	5303311306		Screw,8-18 X 0.375 ,(8)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
