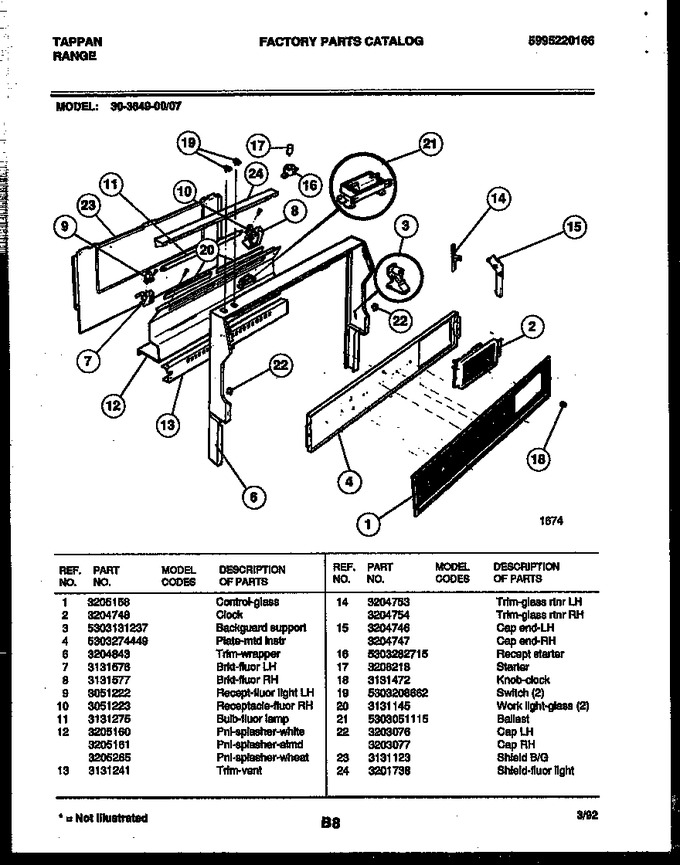

02 - Backguard
03 - Broiler Drawer Parts
04 - Cooktop Parts
05 - Door Parts
06 - Burner Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205158 | Control-glass |
|
- | |||||
| 2 | 3204748 | Clock |
|
- | |||||
| 3 | 5303131237 | Backguard Support |
|
- | |||||
| 4 | 5303274449 | Plate-mtd Instr |
|
- | |||||
| 6 | 3204843 | Trim-wrapper |
|
- | |||||
| 7 | 3131576 | Brkt-fluor Lh |
|
- | |||||
| 8 | 3131577 | Brkt-fluor Rh |
|
- | |||||
| 9 | 3051222 | Recept-fluor Light Lh |
|
- | |||||
| 10 | 3051223 | Receptacle-fluor Rh |
|
- | |||||
| 11 | 3131275 | Bulb - Fluor Lamp |
|
$ 49.40 | |||||
| 12 | 3205265 | Pnl-splasher-wheat |
|
- | |||||
| 13 | 3131241 | Trim-vent |
|
- | |||||
| 14 | 3204753 | Trim-glass Rtnr Lh |
|
- | |||||
| 15 | 3204746 | Cap-end Lh |
|
- | |||||
| 16 | 5303282715 | Recept - Starter |
|
- | |||||
| 17 | 3206218 | Starter |
|
$ 54.08 | |||||
| 18 | 3131472 | Knob-clock |
|
- | |||||
| 19 | 5303208662 | Switch (2) |
|
- | |||||
| 20 | 3131145 | Work Light - Glass (2) |
|
- | |||||
| 21 | 5303051115 | Ballast |
|
- | |||||
| 22 | 3203076 | Cap-lh |
|
- | |||||
| 23 | 3131123 | Shield B/g |
|
- | |||||
| 24 | 3201738 | Shield-fluor Light |
|
- | |||||
| 14A | 3204754 | Trim-glass Rtnr Rh |
|
- | |||||
| 15A | 3204747 | Cap-end Rh |
|
- | |||||
| 22A | 3203077 | Cap-rh |
|
- |
