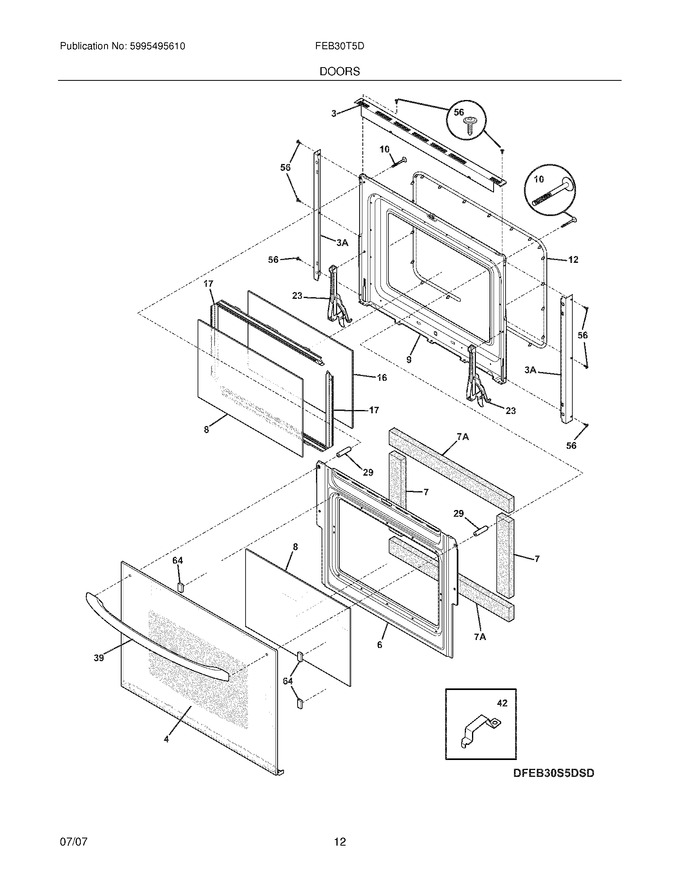

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318260201		Trim,oven Door ,black ,upper				$ 57.91
4	318403500		Glass Assy.,oven Door ,black ,outer ,w/ Trim   (Replaces: 318261300)				$ 304.77
6	318260520		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318259601		Liner,oven Door ,upper				$ 99.12
10	5304453223		Screw,handle Mtg ,10-14 X 1.82 ,(2)			Immediately	$ 13.19
12	318053120		Seal,oven Door ,upper   (Replaces: 318053130)			Immediately	$ 159.62
16	318212210		Glass,oven Door ,heat Barrier				$ 173.72
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
23	318024722		Hinge,door ,upper ,(2)		Appelez-nous	-
29	318014402		Spacer,door		Appelez-nous	-
39	316270200		Handle,door ,black				$ 136.40
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
7A	318372016		Insulation,door ,(2)   (Replaces: 318372002)				$ 17.72
NI	5303323277		Screw (8-18x13/32)				$ 8.66
