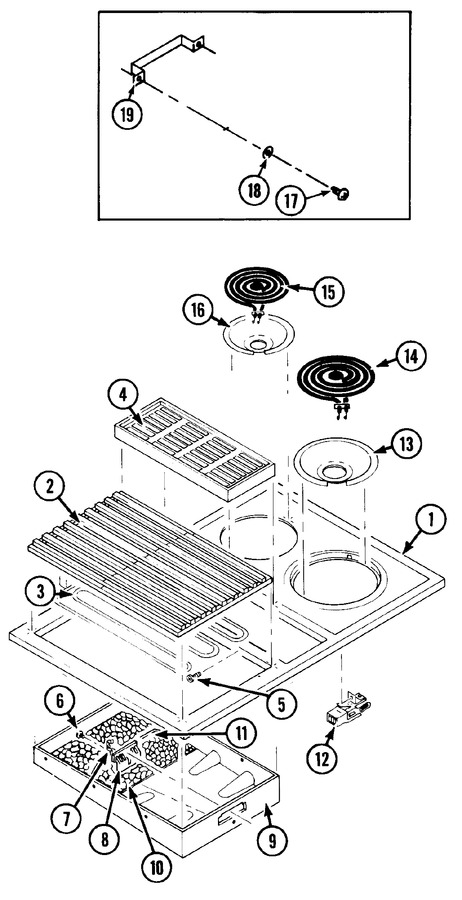

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum
02 - Burner Box
03 - Control Panel
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 703454 | Top (stnls) | 1 |
|
- | ||||
| 1 | 704101 | Top | 3 |
|
- | ||||
| 2 | 707886 | Grate | 1 |
|
- | ||||
| 3 | 700491 | Element, Grill | 1 |
|
- | ||||
| 4 | DE81-04768A | Grill, Air (Replaces: 700667) | 1 |
|
$ 109.33 | ||||
| 5 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 6 | WP489128 | Screw (Replaces: Y707341) | 1 |
|
$ 9.79 | ||||
| 7 | 74004835 | Clip (Replaces: Y702699) | 1 |
|
$ 11.37 | ||||
| 8 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 1 |
|
Immediately | $ 96.61 | |||
| 9 | Y712197 | Wire, Brown | 8 |
|
- | ||||
| 9 | Y701491 | Wire, Red | 1 |
|
- | ||||
| 9 | Y701492 | Wire, Yellow | 1 |
|
- | ||||
| 9 | Y701489 | Contact/wire Assy. (blu-rt) | 8 |
|
- | ||||
| 9 | Y701490 | Wire, Black | 1 |
|
- | ||||
| 9 | Y701899 | Wire, Blue | 1 |
|
- | ||||
| 9 | 701955 | Pan, Grill (lt) | 1 |
|
- | ||||
| 9 | Y702042 | Kit, Wire | 1 |
|
- | ||||
| 9 | Y712431 | Kit, Wire | 8 |
|
- | ||||
| 9 | Y712203 | Wire, Violet | 8 |
|
- | ||||
| 9 | Y712200 | Wire, Yellow | 8 |
|
- | ||||
| 10 | 708929 | Plate, Rock | 1 |
|
- | ||||
| 11 | 700819 | Support, Rock Plate | 1 |
|
$ 71.81 | ||||
| 12 | 12001676 | Kit, Wire Element (Replaces: Y712143) | 1 |
|
Immediately | $ 28.45 | |||
| 13 | 715878 | Pan, Drip (8``) | 1 |
|
Immediately | $ 21.16 | |||
| 14 | WPY04100166 | Element, Conv.(8`` 240v) (Replaces: 715928) | 1 |
|
Immediately | $ 47.21 | |||
| 15 | WPY04100165 | Element, Conv.(6`` 240v) (Replaces: 715927) | 1 |
|
Immediately | $ 50.62 | |||
| 16 | 715877 | Pan, Drip (6``) | 1 |
|
Immediately | $ 19.39 | |||
| 17 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 18 | Y707664 | Washer | 1 |
|
- | ||||
| 19 | Y702698 | Bracket | 1 |
|
- |
