SELECT A DIAGRAM

01 - Blower Plenum


02 - Burner Box


03 - Escutcheon Assembly

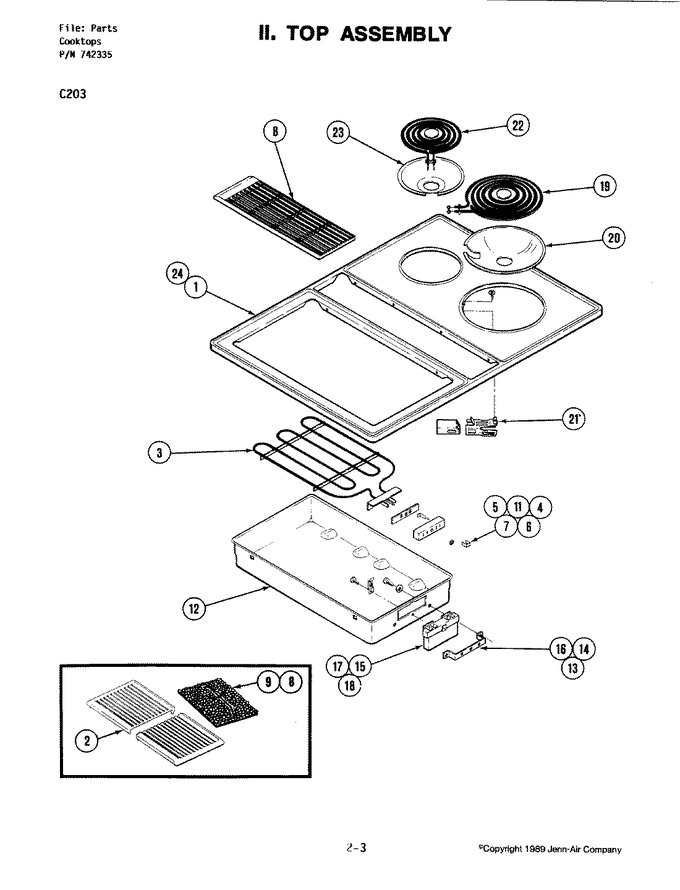

04 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704101		Top	1	Appelez-nous	-
2	707886		Grate	1	Appelez-nous	-
3	703345		Element, Complete 240v	1	Appelez-nous	-
4	Y700449		Insulator	1	Appelez-nous	-
5	WPY708730		Block, Terminal   (Replaces: Y708730)	1		Immediately	$ 87.44
6	Y708862		Nut, Speed	1			$ 13.08
7	Y700450		Clip, Shunt	1			$ 9.51
8	DE81-04768A		Grill, Air   (Replaces: 700667)	1			$ 109.33
9	708929		Plate, Rock	1	Appelez-nous	-
11	Y708572		Spade, Contact	1		Immediately	$ 11.34
12	Y701489		Contact/wire Assy. (blu-rt)	1	Appelez-nous	-
12	Y712197		Wire, Brown	1	Appelez-nous	-
12	Y712200		Wire, Yellow	1	Appelez-nous	-
12	Y712203		Wire, Violet	1	Appelez-nous	-
12	712356		Wire Kit	1	Appelez-nous	-
12	701955		Pan, Grill (lt)	1	Appelez-nous	-
13	WP59002061		Screw   (Replaces: Y707172)	1			$ 6.98
14	Y707664		Washer	1	Appelez-nous	-
15	WPY702434		Receptacle (ceramic)   (Replaces: Y702434)	1		Immediately	$ 96.61
16	Y702698		Bracket	1	Appelez-nous	-
17	74004835		Clip   (Replaces: Y702699)	1			$ 11.37
18	WP489128		Screw   (Replaces: Y707341)	1			$ 9.79
19	WP660533		Element, Conv. 9``   (Replaces: Y703421)	1		Immediately	$ 39.47
20	715878		Pan, Drip (8``)	1		Immediately	$ 21.16
21	12001676		Rewire Kit   (Replaces: Y712361)	1		Immediately	$ 28.45
22	WPY04100165		Element, Conv. 6``   (Replaces: Y703422)	1		Immediately	$ 50.62
23	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
23	715877		Pan, Drip (6``)	1		Immediately	$ 19.39
24	16000448		Manual, Service-no Refund	1	Appelez-nous	-
NI	700819		Support, Rock Plate	1			$ 71.81

    View Diagram in Separate Window       Print Part List
