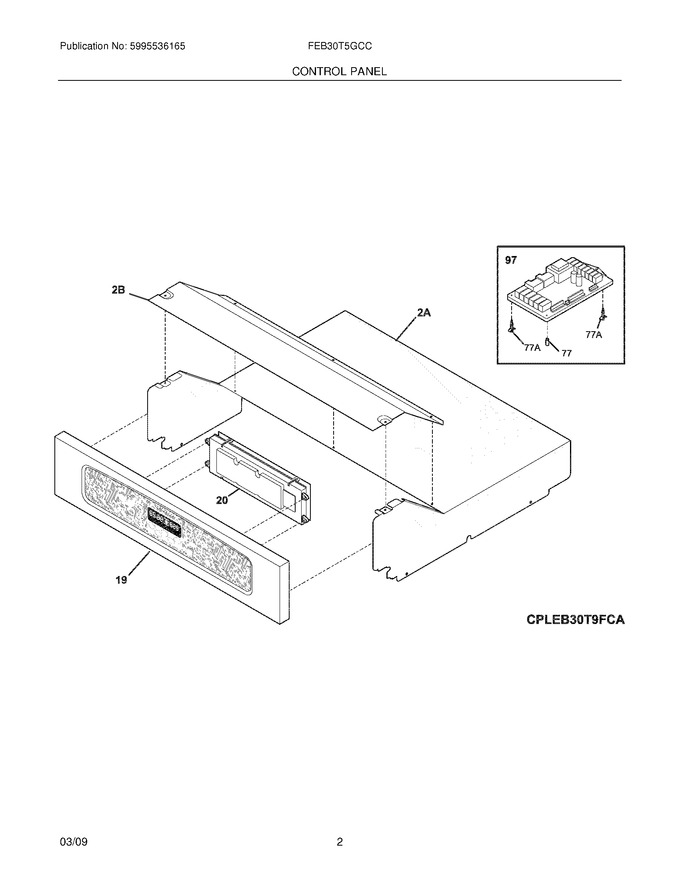

03 - Control Panel
05 - Upper Oven
07 - Lower Oven
09 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 318271544 | Control Panel Assembly,steel/glass ,stainless/black,w/touch Pad |
|
- | |||||
| 77 | 316247900 | Spacer,power Board |
|
$ 44.65 | |||||
| 97 | 316443913 | Board,relay ,dual Oven |
|
$ 370.44 | |||||
| 2A | 318257300 | Shield,oven Top |
|
$ 89.36 | |||||
| 2B | 318260100 | Cover,box |
|
$ 44.42 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| F20 | 316443833 | Control,electronic ,es610w1 ,dual Oven |
|
- | |||||
| FNI | 5304517327 | Wiring Harness,timer ,to Relay Board (Replaces: 318370374) |
|
$ 83.42 | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303311306 | Screw,8-18 X 0.375 ,(6) |
|
- |
