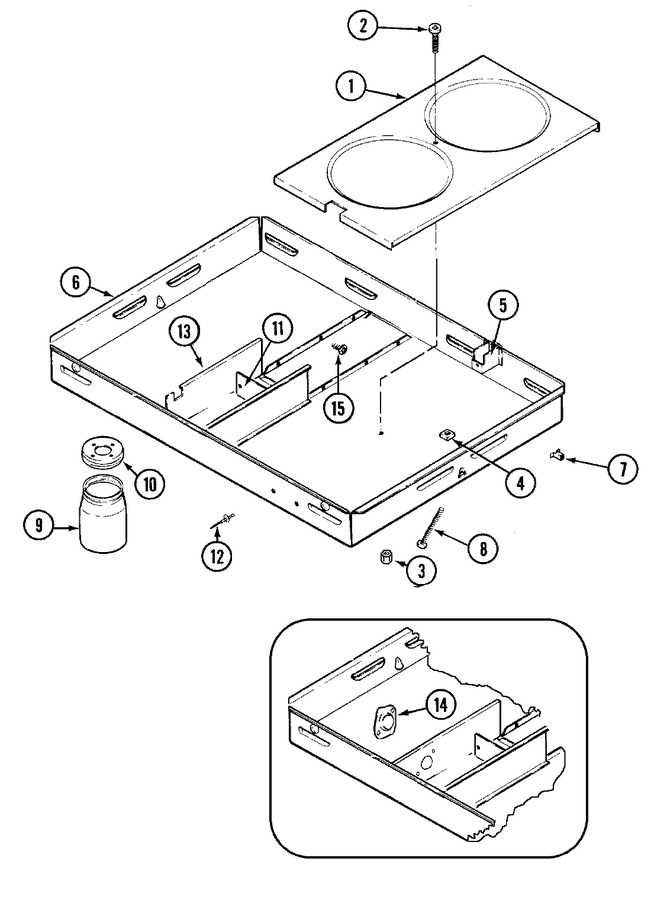

01 - Blower Plenum (206)
02 - Burner Box Assembly (c206)
03 - Escutcheon Assembly (c206)
04 - Top Assembly (c206)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y707822 | Insert, Burner Box | 1 |
|
- | ||||
| 2 | Y707402 | Screw | 1 |
|
- | ||||
| 3 | 715938 | Pad, Spacer | 1 |
|
- | ||||
| 3 | 703293 | Palnut | 1 |
|
- | ||||
| 4 | M0282009 | Nut,square (Replaces: Y707124) | 1 |
|
$ 12.06 | ||||
| 5 | 703008 | Bracket, Top Support | 1 |
|
- | ||||
| 6 | 712507 | Burner Box Assembly | 1 |
|
- | ||||
| 7 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 8 | Y707121 | Screw | 1 |
|
- | ||||
| 9 | WPY707869 | Jar, Drain (Replaces: Y707869) | 1 |
|
$ 61.43 | ||||
| 10 | Y707870 | Lid, Jar | 1 |
|
- | ||||
| 11 | 707746 | Insulator | 1 |
|
- | ||||
| 12 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.14 | ||||
| 12 | Y707664 | Washer | 1 |
|
- | ||||
| 13 | 715439 | Baffle | 1 |
|
- | ||||
| 14 | Y704127 | Limiter, Thermal | 1 |
|
- | ||||
| 15 | WPW10253196 | Screw (Replaces: Y707113) | 1 |
|
$ 3.76 | ||||
| 15 | Y707695 | Bushing | 1 |
|
- |
