SELECT A DIAGRAM

01 - Cover

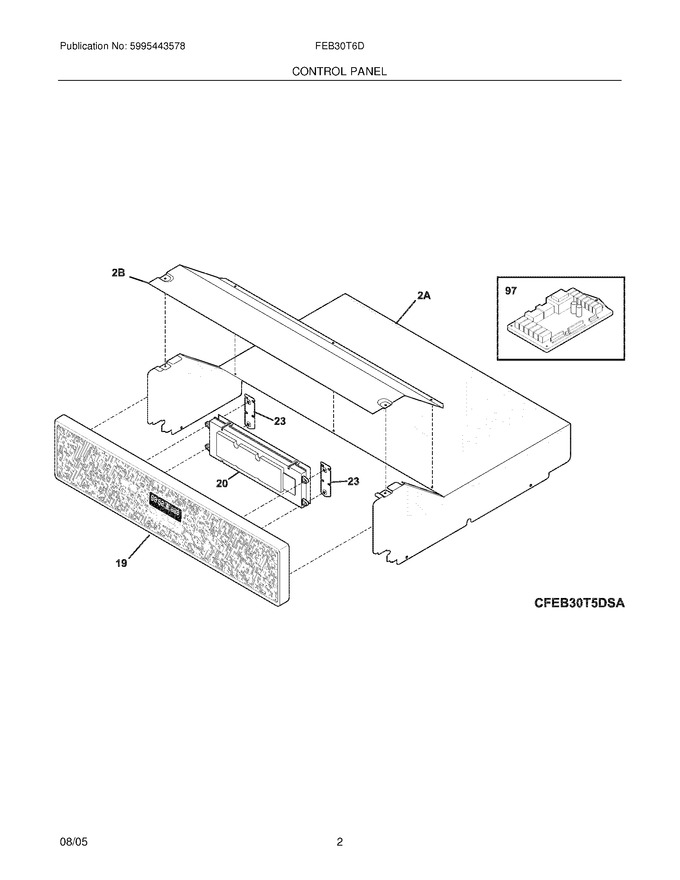

03 - Control Panel


05 - Upper Oven


07 - Lower Oven


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318274616		Control Panel Assembly,glass ,bisque ,w/ Touch Pad		Appelez-nous	-
23	318262900		Bracket,control Mtg. ,(2)		Appelez-nous	-
97	316429800		Board,relay ,dual Oven				$ 486.21
2A	318257300		Shield,oven Top				$ 89.36
2B	318260100		Cover,box				$ 44.42
F20	316429709		Control,electronic ,5800w2 ,dual Oven		Appelez-nous	-
NI	318231704		Harness,wiring ,control-relay				$ 174.46
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
