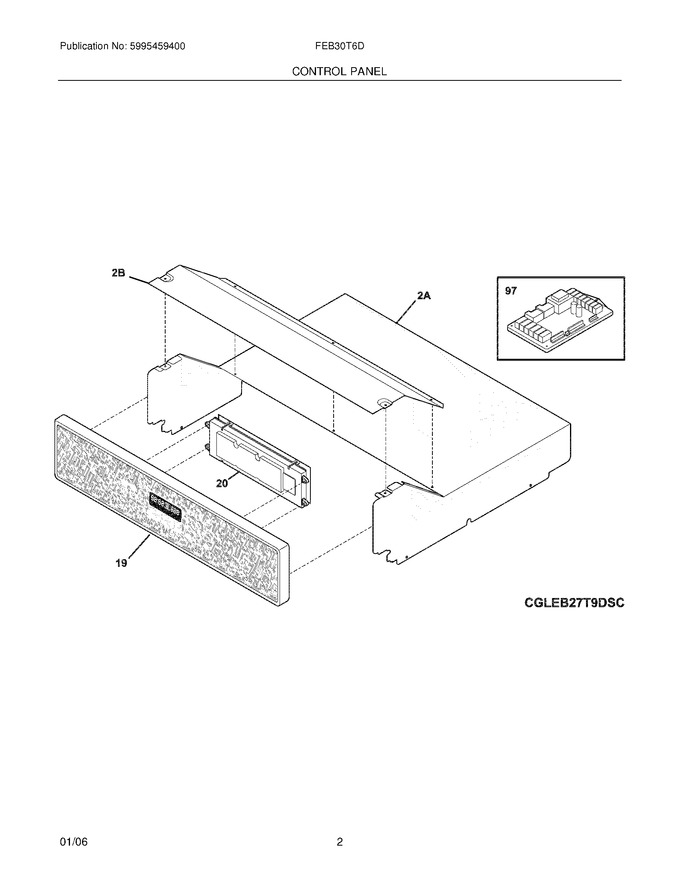

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 318342904 | Control Panel Assembly,glass ,bisque ,w/touch Pad |
|
- | |||||
| 97 | 316443902 | Board,relay ,dual Oven |
|
$ 382.00 | |||||
| 2A | 318257300 | Shield,oven Top |
|
$ 89.36 | |||||
| 2B | 318260100 | Cover,box |
|
$ 44.42 | |||||
| F20 | 316443804 | Control,electronic ,es610w2 ,dual Oven |
|
- | |||||
| NI | 318231751 | Harness,wiring ,control-relay |
|
$ 107.15 | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 |
