01 - Blower Assembly


02 - Burner Box Assembly


03 - Escutcheon Assembly

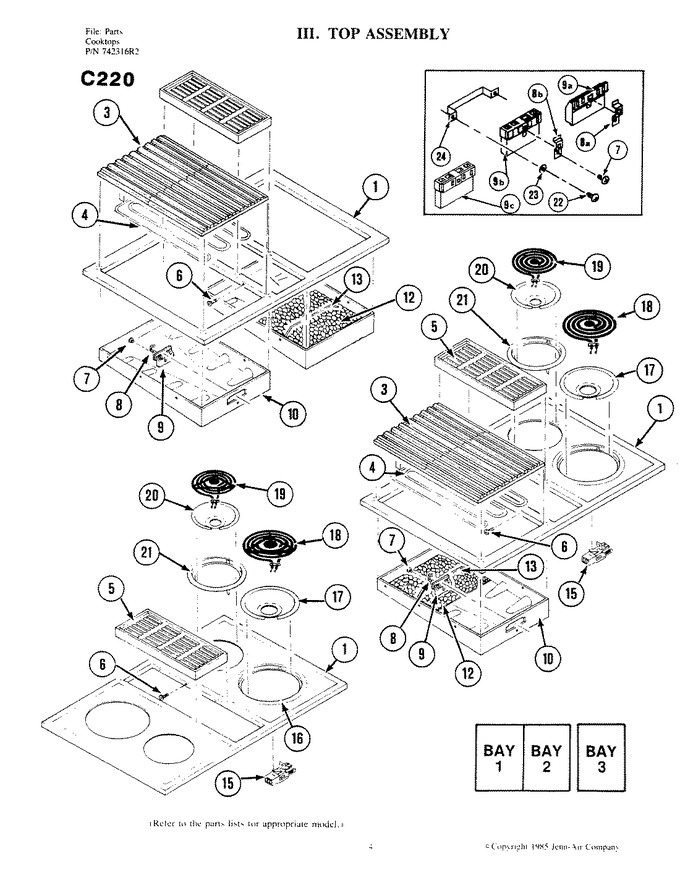

04 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701538		Top	1	Appelez-nous	-
3	707886		Grate	1	Appelez-nous	-
4	WP5700M426-60		Element, Grill   (Replaces: Y700452)	1			$ 382.26
5	DE81-04768A		Grill, Air   (Replaces: 700667)	1			$ 109.33
6	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
7	WP489128		Screw   (Replaces: Y707341)	1			$ 9.79
8	74004835		Clip   (Replaces: 715121)	1			$ 11.37
9	Y715120		Receptacle	1			$ 24.18
10	Y701493		4 Wire Kit+	1	Appelez-nous	-
10	Y701489		Contact/wire Assy. (blu-rt)	1	Appelez-nous	-
10	Y701490		Wire, Black	1	Appelez-nous	-
10	Y701491		Wire, Red	1	Appelez-nous	-
10	Y701492		Wire, Yellow	1	Appelez-nous	-
10	Y701953		Pan, Grill (w/brackets)	1	Appelez-nous	-
12	708929		Plate, Rock	1	Appelez-nous	-
13	700819		Support, Rock Plate	1			$ 71.81
15	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
16	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
17	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
18	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
19	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
20	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
21	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
22	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
23	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
NI	16000448		Manual, Service-no Refund	1	Appelez-nous	-
NI	W10124350		Not Required Part Or See Note	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
