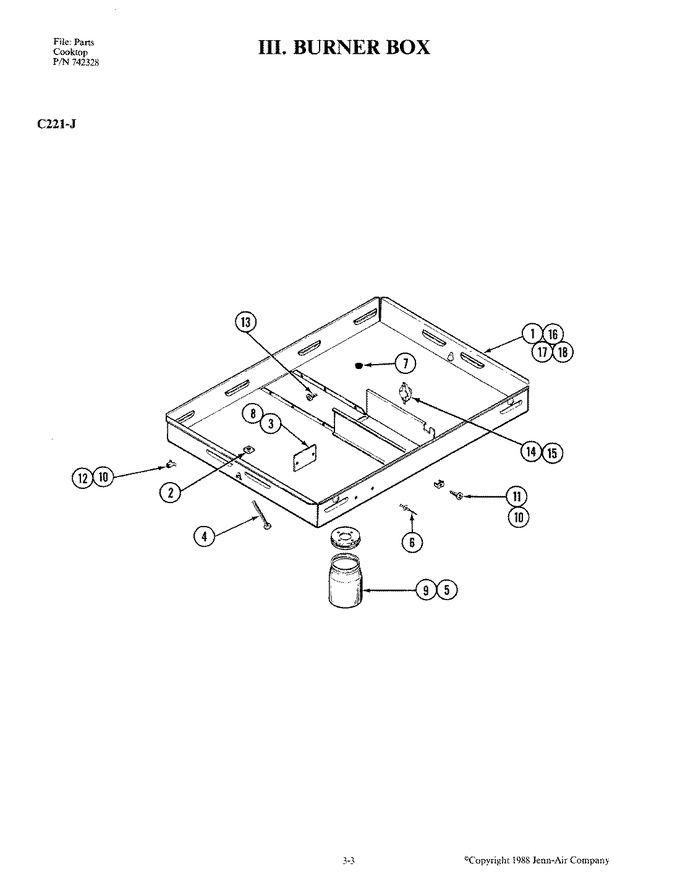

01 - Blower Plenum
02 - Burner Box
03 - Escutcheon Assembly
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 712435 | Box, Burner, Complete | 1 |
|
- | ||||
| 2 | M0282009 | Nut,square (Replaces: Y707124) | 1 |
|
$ 12.06 | ||||
| 3 | 707746 | Insulator | 1 |
|
- | ||||
| 4 | Y707121 | Screw | 1 |
|
- | ||||
| 5 | Y707870 | Lid, Jar | 1 |
|
- | ||||
| 6 | WP210720 | Rivet, Jar Lid (Replaces: Y707128) | 1 |
|
$ 12.14 | ||||
| 7 | Y707695 | Bushing | 1 |
|
- | ||||
| 8 | Y707664 | Washer | 1 |
|
- | ||||
| 9 | WPY707869 | Jar, Drain (Replaces: Y707869) | 1 |
|
$ 61.43 | ||||
| 10 | Y700672 | Standoff----na | 1 |
|
- | ||||
| 11 | 701933 | Screw | 1 |
|
- | ||||
| 12 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 13 | WPW10253196 | Screw (Replaces: Y707113) | 1 |
|
$ 3.76 | ||||
| 14 | 704128 | Limit, Thermal | 1 |
|
- | ||||
| 15 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 16 | 704372 | Wire, Ground Green | 1 |
|
- | ||||
| 17 | WP71001171 | Screw (Replaces: Y701379) | 1 |
|
$ 6.26 | ||||
| 18 | WPW10253196 | Screw (Replaces: Y707113) | 1 |
|
$ 3.76 | ||||
| 18 | 704139 | Wire, Red | 1 |
|
- |
