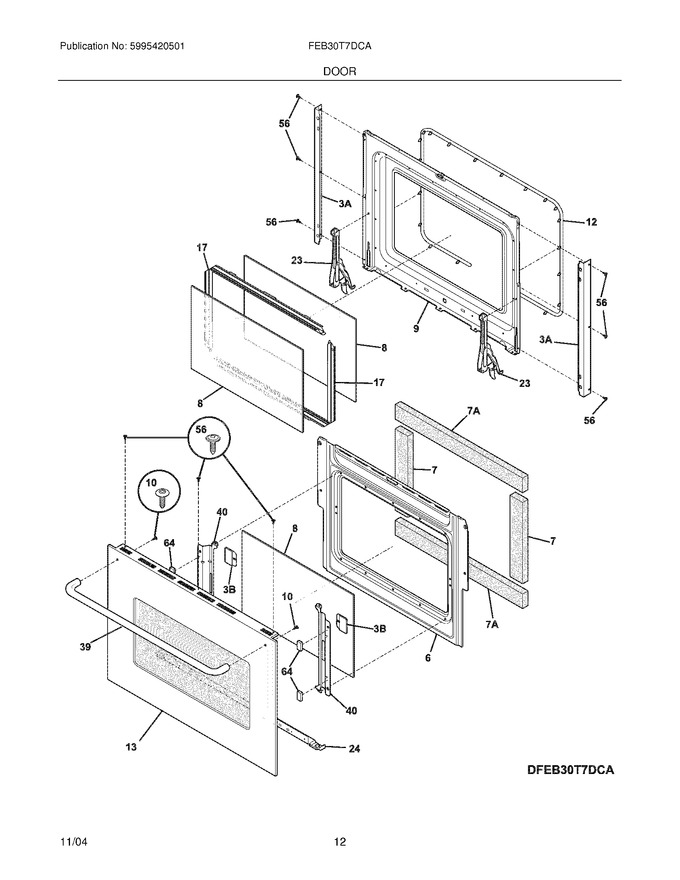

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260500		Baffle,door		Appelez-nous	-
7	318133792		Insulation,oven Door		Appelez-nous	-
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318259605		Liner,oven Door,upper		Appelez-nous	-
10	240442708		Screw,handle Mtg ,10-32 X 3/4   (Replaces: 5304400794)				$ 8.34
12	318053120		Seal,oven Door			Immediately	$ 159.62
13	318272152		Door Assy,glass ,stainless Steel ,outer		Appelez-nous	-
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
23	318024714		Hinge,oven Door		Appelez-nous	-
24	318260301		Trim,door ,black ,lower				$ 44.26
39	316079500		Handle-door/drawer, Stainless				$ 289.70
40	318382302		Bracket,glass Holder ,(2)   (Replaces: 318242700)				$ 50.81
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer,(4)				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
3B	318262104		Cover,rear Door ,black ,(2)   (Replaces: 318262101)				$ 24.99
7A	318133797		Insulation,oven Door,cavity		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303323277		Screw (8-18x13/32)				$ 8.66
