SELECT A DIAGRAM
01 - Blower Plenum (c226)
02 - Burner Box

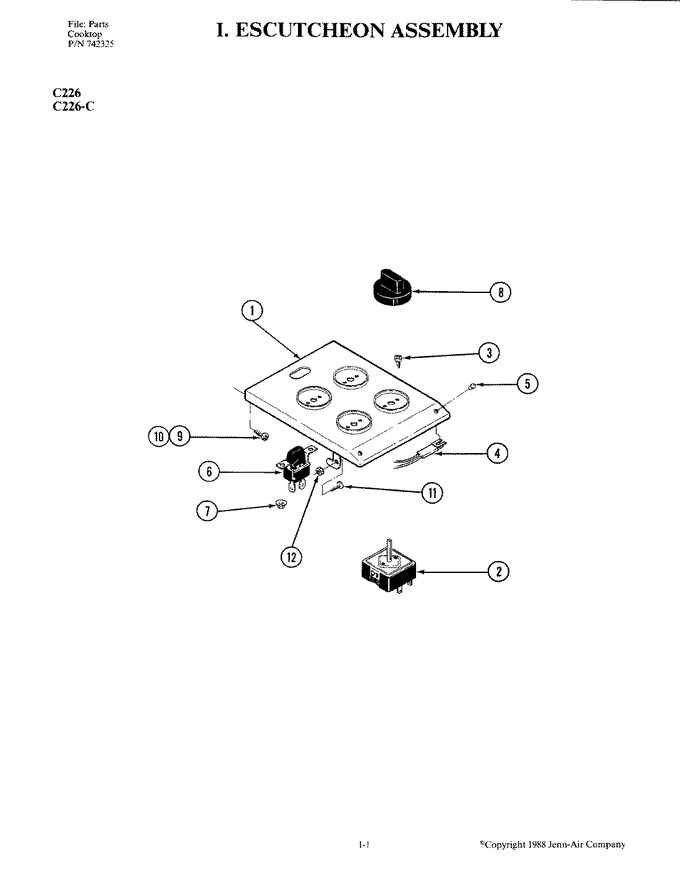

03 - Escutcheon Assembly
04 - Top Assembly (c226)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704210 | Escutcheon | 1 |
|
- | ||||
| 2 | W11120791 | Switch, Infinite (Replaces: 703650) | 1 |
|
Immediately | $ 98.55 | |||
| 3 | Y703935 | Screw | 1 |
|
- | ||||
| 4 | 704209 | Light, Pilot | 1 |
|
- | ||||
| 5 | 703927 | Lens | 1 |
|
- | ||||
| 6 | Y704573 | Switch, Fan (blk) | 1 |
|
- | ||||
| 7 | 7103P166-60 | Palnut (Replaces: 715500) | 1 |
|
$ 15.91 | ||||
| 8 | WPY703899 | Knob, Switch (blk) (Replaces: Y703899) | 1 |
|
Immediately | $ 21.09 | |||
| 9 | WP7101P126-60 | Screw (Replaces: Y700627) | 1 |
|
Immediately | $ 6.85 | |||
| 10 | Y700834 | Clip | 1 |
|
- | ||||
| 11 | WP488234 | Screw (Replaces: 708861) | 1 |
|
$ 6.07 | ||||
| NI | 16000448 | Manual, Service-no Refund | 1 |
|
- |
