New Model Search:

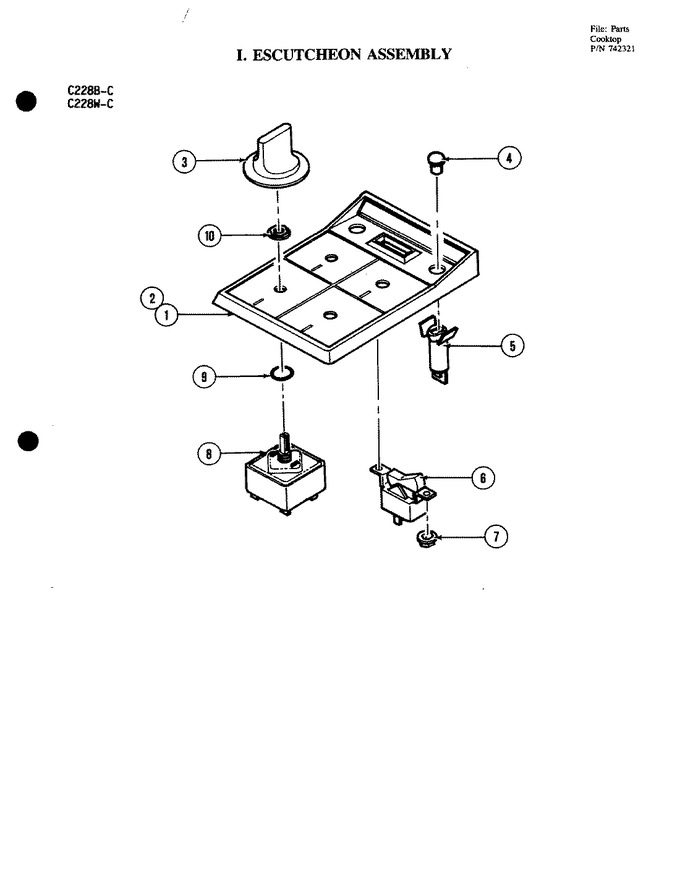

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 703657 | Eschutcheon | 1 |
|
- | ||||
| 2 | 703656 | Inlay | 1 |
|
- | ||||
| 3 | WPW10116766 | Knob, Switch (Replaces: Y703651) | 1 |
|
$ 23.24 | ||||
| 4 | Y703849 | Lens, Pilot Light | 1 |
|
- | ||||
| 5 | 715396 | Pilot Light & Lens | 1 |
|
- | ||||
| 6 | DE81-10045A | Switch, Fan (Replaces: 703664) | 1 |
|
$ 330.36 | ||||
| 7 | 7103P166-60 | Palnut (Replaces: 715500) | 1 |
|
$ 15.91 | ||||
| 8 | W11120795 | Switch, Infinite (Replaces: Y703147) | 1 |
|
Immediately | $ 84.20 | |||
| 9 | Y700833 | O Ring | 1 |
|
- | ||||
| 10 | Y712255 | Palnut | 1 |
|
- | ||||
| NI | 16000448 | Manual, Service-no Refund | 1 |
|
- |
