View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum - C228w
02 - Burner Box Assembly - C228w
03 - Escutcheon - C228w

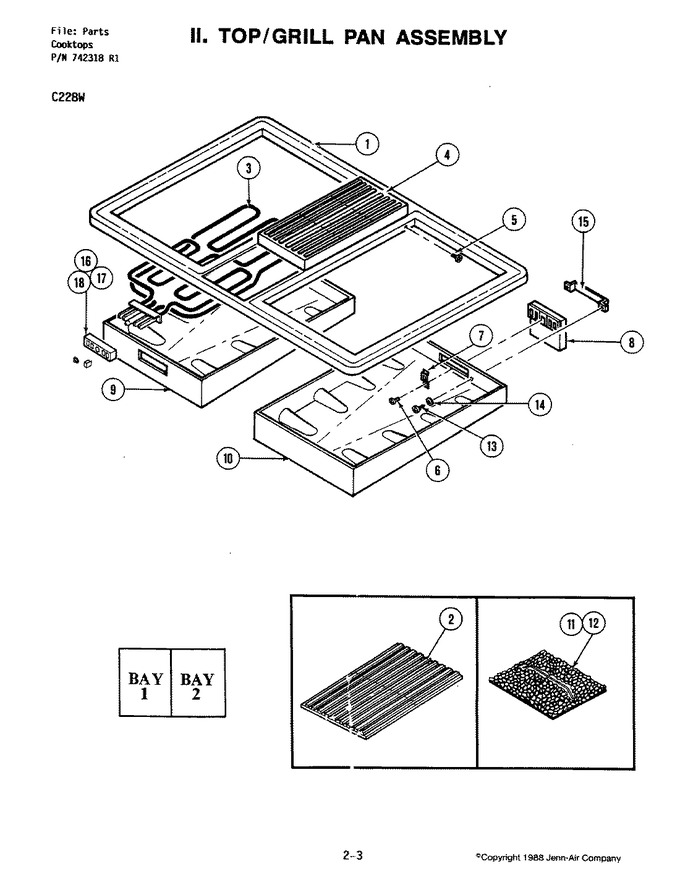

04 - Top/grill Pan Assembly - C228w
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704117 | Top | 1 |
|
- | ||||
| 1 | Y704985 | Top | 2 |
|
- | ||||
| 2 | 703905 | Grate, Grill | 1 |
|
- | ||||
| 3 | WP5700M426-60 | Element, Grill (Replaces: Y700452) | 1 |
|
$ 382.26 | ||||
| 3 | Y700457 | Element,grill Assembly | 1 |
|
- | ||||
| 4 | Y704603 | Grill, Air (wht) | 1 |
|
- | ||||
| 5 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 6 | WP489128 | Screw (Replaces: Y707341) | 1 |
|
$ 9.79 | ||||
| 7 | 74004835 | Clip (Replaces: Y702699) | 1 |
|
$ 11.37 | ||||
| 8 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 1 |
|
Immediately | $ 96.61 | |||
| 9 | Y712203 | Wire, Violet | 1 |
|
- | ||||
| 9 | 701955 | Pan, Grill (lt) | 1 |
|
- | ||||
| 9 | Y712200 | Wire, Yellow | 1 |
|
- | ||||
| 9 | Y712030 | Wire, Blue | 1 |
|
- | ||||
| 10 | Y701956 | Pan, Grill (rt) | 1 |
|
- | ||||
| 10 | Y712199 | Wire, Brown | 1 |
|
- | ||||
| 10 | WP5708M008-60 | Wire, Violet (Replaces: Y712202) | 1 |
|
$ 87.19 | ||||
| 10 | WP5708M007-60 | Wire, Yellow (Replaces: Y712201) | 1 |
|
$ 117.23 | ||||
| 10 | WP5708M005-60 | Contact/wire Assy. (blu-lt) (Replaces: Y712029) | 1 |
|
$ 86.45 | ||||
| 11 | 708929 | Plate, Rock | 1 |
|
- | ||||
| 12 | 700819 | Support, Rock Plate | 1 |
|
$ 71.81 | ||||
| 13 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 14 | Y707664 | Washer | 1 |
|
- | ||||
| 15 | Y702698 | Bracket | 1 |
|
- | ||||
| 16 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
Immediately | $ 87.44 | |||
| 17 | Y700450 | Clip, Shunt | 1 |
|
$ 9.51 | ||||
| 18 | Y708862 | Nut, Speed | 1 |
|
$ 13.08 |
