SELECT A DIAGRAM

01 - Cover


02 - Body

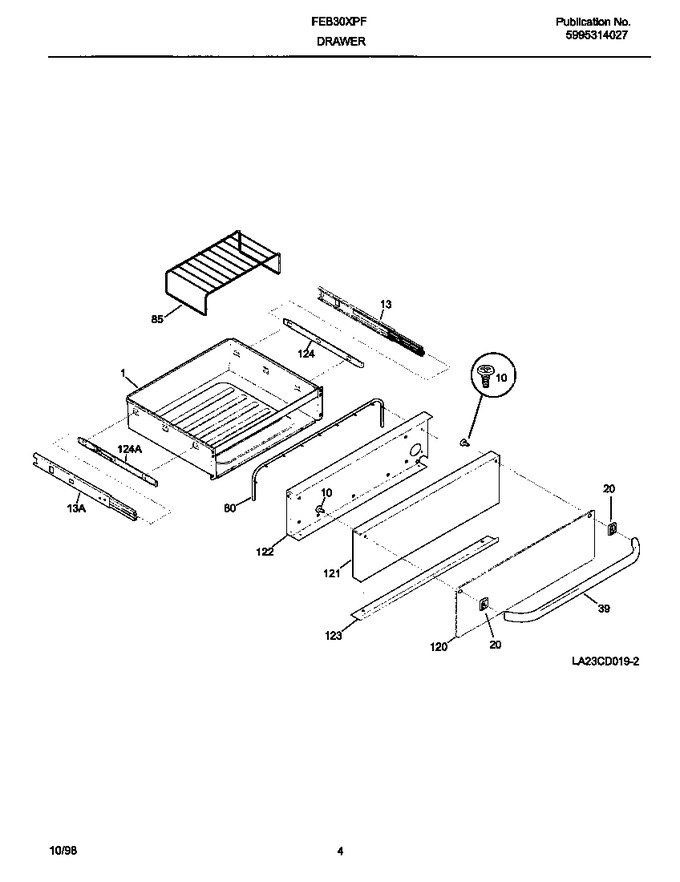

03 - Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318142500		Drawer,warmer		Appelez-nous	-
10	3051070		Screw		Appelez-nous	-
13	316094901		Rail-drawer,lh,outer		Appelez-nous	-
13	316094900		Rail,drawer ,rh Outer		Appelez-nous	-
20	318014300		Spacer-handle				$ 36.44
39	316091113		Handle-door		Appelez-nous	-
80	318052700		Seal-door		Appelez-nous	-
85	807328301		Rack   (Replaces: 316093600)				$ 87.21
120	318051700		Glass-drawer		Appelez-nous	-
121	318100201		Front Panel Drawer		Appelez-nous	-
122	318135201		Interior Panel		Appelez-nous	-
123	318088600		Bracket-glass		Appelez-nous	-
124	316096500		Channel-drawer, Rh		Appelez-nous	-
124	316096501		Channel-drawer, Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
