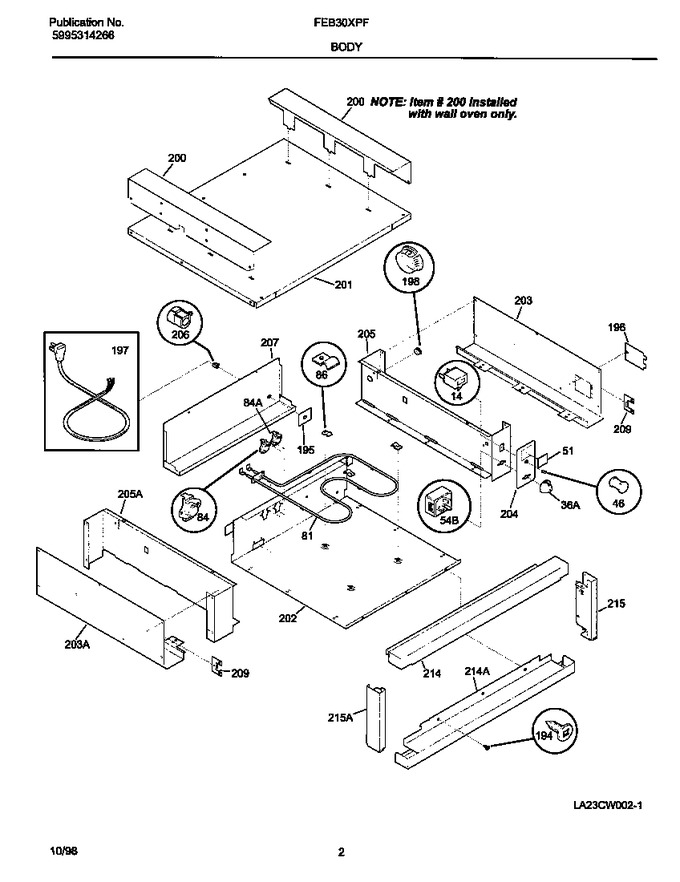

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Pilot Light				$ 53.81
36	318017600		Knob-warmer,black				$ 30.14
46	5308006417		Lens-light				$ 19.06
51	316082300		Insert-nameplate		Appelez-nous	-
54	5304508926		Switch-warmer   (Replaces: 316095500)			Immediately	$ 84.18
81	316093100		Element, Warmer Drawer		Appelez-nous	-
84	318005103		Thermostat				$ 159.51
84	318005104		Thermostat-safety				$ 103.27
86	316095800		Clip-hold Down,warmer				$ 9.93
194	5303300265		Screw,8-18 X 1/2 Vis				$ 15.17
195	318078701		Plate,service Cord		Appelez-nous	-
196	318100101		Cover-access		Appelez-nous	-
197	318144000		Service Cord		Appelez-nous	-
198	08008009		Bushing,snap		Appelez-nous	-
200	318091201		Bracket		Appelez-nous	-
201	318145101		Wrapper Upper		Appelez-nous	-
202	318121601		Wrapper,lower		Appelez-nous	-
203	318025711		Bracket-side Panel		Appelez-nous	-
203	318025701		Bracket Side Panel		Appelez-nous	-
204	318021900		Decorative Plate		Appelez-nous	-
205	318123701		Side Panel,lh		Appelez-nous	-
205	318123711		Side Panel,rh		Appelez-nous	-
206	5304407910		Strain Relief		Appelez-nous	-
207	318143601		Panel Wires		Appelez-nous	-
209	318162401		Bracket Wall		Appelez-nous	-
214	318118600		Bottom Trim Stainless Steel		Appelez-nous	-
214	318118400		Top Trim Stainless Steel		Appelez-nous	-
215	318125601		Side Trim Lh Stainless Steel		Appelez-nous	-
215	318125600		Side Trim Rh Stainless Steel		Appelez-nous	-
*18960	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*18961	5303323140		Screw,ground 10-32 X 3/8``		Appelez-nous	-
*18962	5304453707		Screw,8-32 X 3/8`` Vis   (Replaces: 5303311333)			Immediately	$ 15.92
*18963	5303288565		Screw,8-32 X 3/16`` Vis   (Replaces: 5303323134)				$ 3.12
