01 - Blower Plenum (c236b,b-c,ngb)


02 - Burner Box (c236b,b-c,ngb)


03 - Escutcheon Assembly (c236b,b-c,ngb)

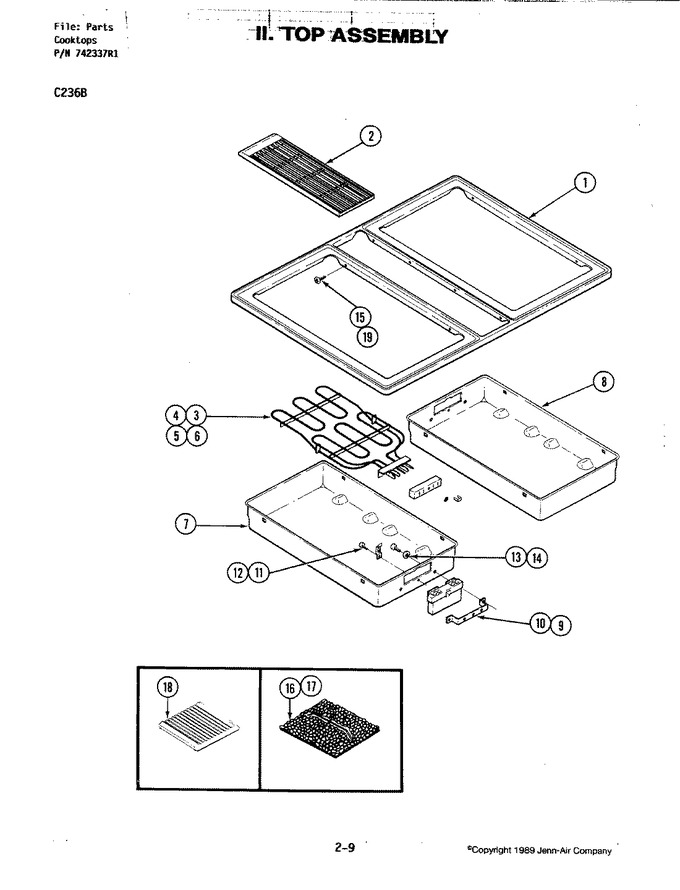

04 - Top Assembly (c236b,b-c,ngb)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y704984		Top, Range (blk)	1	Appelez-nous	-
1	Y04100404		Top, Black	3	Appelez-nous	-
2	703926		Grill, Air (blk)	1	Appelez-nous	-
3	WP5700M426-60		Element Complete, 240v   (Replaces: Y712430)	1			$ 382.26
4	WPY708730		Block, Terminal   (Replaces: Y708730)	1		Immediately	$ 87.44
5	Y708862		Nut, Speed	1			$ 13.08
6	Y700450		Clip, Shunt	1			$ 9.51
7	Y712431		Kit, Wire	1	Appelez-nous	-
7	Y712200		Wire, Yellow	1	Appelez-nous	-
7	Y712203		Wire, Violet	1	Appelez-nous	-
7	Y712030		Wire, Blue	1	Appelez-nous	-
7	Y712197		Wire, Brown	1	Appelez-nous	-
7	701955		Pan, Grill (lt)	1	Appelez-nous	-
8	Y712199		Wire, Brown	1	Appelez-nous	-
8	Y701956		Pan, Grill (rt)	1	Appelez-nous	-
8	WP5708M007-60		Wire, Yellow   (Replaces: Y712201)	1			$ 117.23
8	WP5708M005-60		Contact/wire Assy. (blu-lt)   (Replaces: Y712029)	1			$ 86.45
8	WP5708M008-60		Wire, Violet   (Replaces: Y712202)	1			$ 87.19
8	Y712438		Kit, Wire	1			$ 137.49
9	WPY702434		Receptacle (ceramic)   (Replaces: Y702434)	1		Immediately	$ 96.61
10	Y702698		Bracket	1	Appelez-nous	-
11	74004835		Clip   (Replaces: Y702699)	1			$ 11.37
12	WP489128		Screw   (Replaces: Y707341)	1			$ 9.79
13	Y707664		Washer	1	Appelez-nous	-
14	WP59002061		Screw   (Replaces: Y707172)	1			$ 6.98
15	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
16	708929		Plate, Rock	1	Appelez-nous	-
17	700819		Support, Rock Plate	1			$ 71.81
18	703905		Grate, Grill	1	Appelez-nous	-
18	WP74003976		Washer   (Replaces: 702592)	1			$ 6.47
