View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum (c236w,w-c,ngw)
02 - Burner Box (c236w,w-c,ngw)

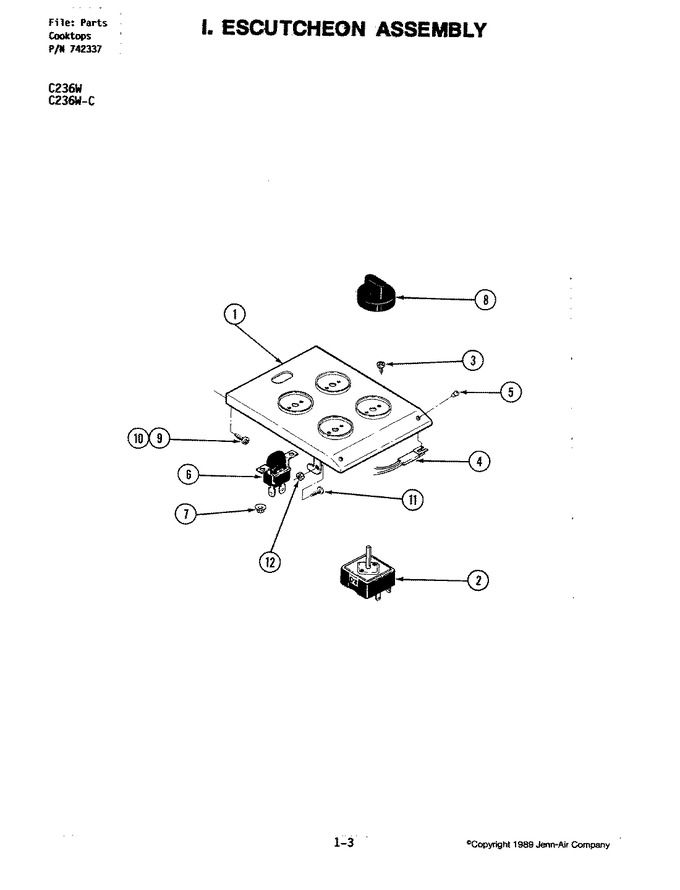

03 - Escutcheon Assembly (c236w,w-c,ngw)
04 - Top Assembly (c236w,w-c,ngw)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704444 | Escutcheon (lt/wht) | 1 |
|
- | ||||
| 2 | W11120791 | Switch, Infinite (Replaces: 703650) | 1 |
|
Immediately | $ 98.55 | |||
| 3 | Y704864 | Screw | 1 |
|
- | ||||
| 4 | 704209 | Light, Pilot | 1 |
|
- | ||||
| 5 | Y704607 | Lens | 1 |
|
- | ||||
| 6 | Y704605 | Switch, Fan | 1 |
|
- | ||||
| 7 | 7103P166-60 | Palnut (Replaces: 715500) | 1 |
|
$ 15.91 | ||||
| 8 | WPY703899 | Knob, Switch----s (Replaces: Y704447) | 1 |
|
Immediately | $ 21.09 | |||
| 9 | W11233072 | Screw (Replaces: Y705007) | 1 |
|
Immediately | $ 12.62 | |||
| 9 | Y700834 | Clip | 1 |
|
- | ||||
| 10 | WP488130 | Nut (Replaces: Y701396) | 1 |
|
$ 6.27 | ||||
| 11 | WP488234 | Screw (Replaces: 708861) | 1 |
|
$ 6.07 | ||||
| 11 | 712528 | Kit, Estutcheon Wire (left) | 1 |
|
- |
