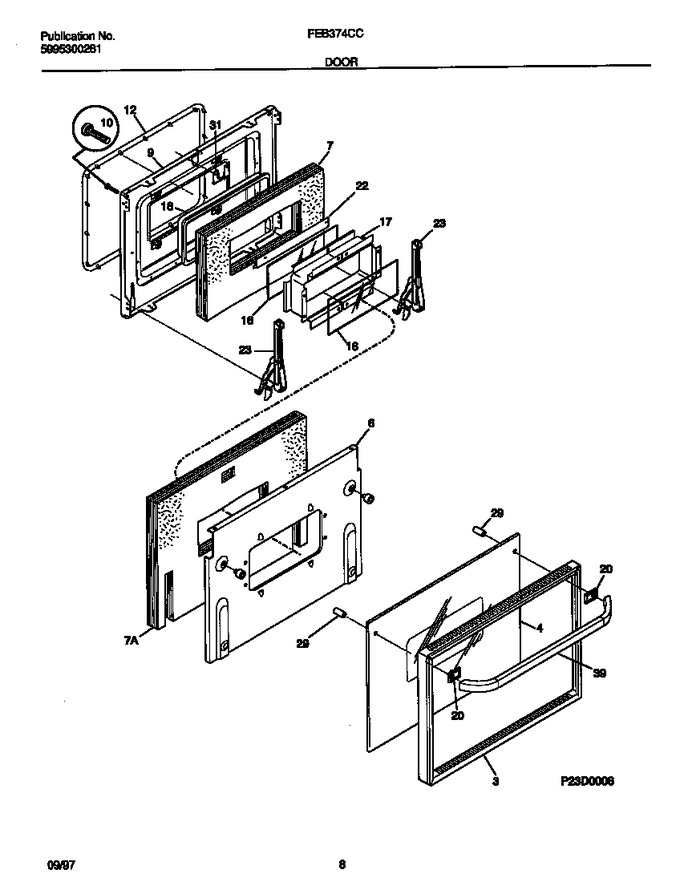

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026710		Trim-oven Door		Appelez-nous	-
4	318041300		Glass-oven Door, Black, Outer		Appelez-nous	-
6	318056801		Baffle-door		Appelez-nous	-
7	5303310532		Insulation-door		Appelez-nous	-
7	5303311233		Insulation, Oven Door/top		Appelez-nous	-
9	318048604		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
12	318053103		Seal-oven Door   (Replaces: 5303311152)			Immediately	$ 150.03
16	5303310533		Glass-oven Door, Heat Barrier				$ 220.55
17	318139000		Spacer-glass		Appelez-nous	-
18	5303310531		Seal-rope		Appelez-nous	-
20	318014300		Spacer-handle, Black, (2)				$ 36.44
22	5303310511		Retainer-glass		Appelez-nous	-
23	5303310506		Hinge-oven Door,assembly		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
31	318065100		Latch-door		Appelez-nous	-
39	316091110		Handle-door, White, Oven		Appelez-nous	-
*22013	5303300414		Spacer, Cork & Rubber				$ 13.18
*22014	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*22015	5303300265		Screw, 8-18 X 1/2				$ 15.17
