01 - Blower Plenum
02 - Body
03 - Control Panel
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

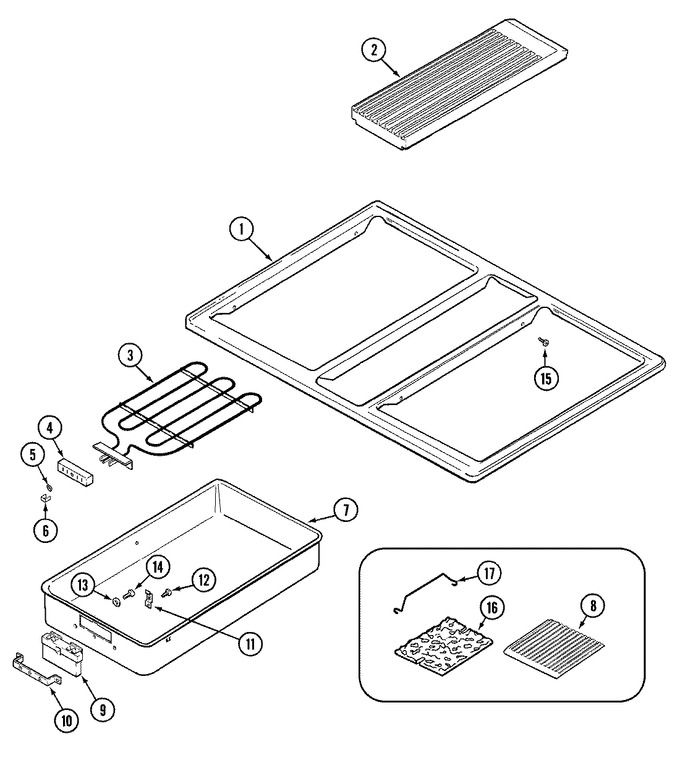

| 1 | Y704984 | Top, Range (blk) | 1 |
|
- | ||||
| 2 | Y703658 | Grill, Air | 1 |
|
- | ||||
| 3 | 700714 | Element, Complete 240v | 1 |
|
- | ||||
| 4 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
Immediately | $ 87.44 | |||
| 5 | Y708862 | Nut, Speed | 1 |
|
$ 13.08 | ||||
| 6 | Y700450 | Clip, Shunt | 1 |
|
$ 9.51 | ||||
| 7 | Y701489 | Contact/wire Assy. (blu-rt) | 1 |
|
- | ||||
| 7 | Y712014 | Wire, Yellow | 1 |
|
- | ||||
| 7 | Y712015 | Wire, Red | 1 |
|
- | ||||
| 7 | 701955 | Pan, Grill (lt) | 1 |
|
- | ||||
| 7 | Y712017 | Wire, Black | 1 |
|
- | ||||
| 7 | 712033 | Kit, Wire | 1 |
|
- | ||||
| 7 | DE81-07493A | Kit, Wire (Replaces: 701937) | 1 |
|
$ 198.39 | ||||
| 8 | Y701956 | Pan, Grill (rt) | 1 |
|
- | ||||
| 8 | WP5708M007-60 | Wire, Yellow (Replaces: Y712020) | 1 |
|
$ 117.23 | ||||
| 8 | WP5708M008-60 | Wire, Red (Replaces: Y712019) | 1 |
|
$ 87.19 | ||||
| 8 | 704429 | Nut, Kep | 1 |
|
- | ||||
| 8 | WP5708M081-60 | Wire, Black (Replaces: Y712018) | 1 |
|
$ 33.62 | ||||
| 8 | Y703746 | Grates, Grill (2) | 1 |
|
- | ||||
| 8 | WP5708M005-60 | Contact/wire Assy. (blu-lt) (Replaces: Y712029) | 1 |
|
$ 86.45 | ||||
| 9 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 1 |
|
Immediately | $ 96.61 | |||
| 10 | Y702698 | Bracket | 1 |
|
- | ||||
| 11 | 74004835 | Clip (Replaces: Y702699) | 1 |
|
$ 11.37 | ||||
| 12 | 00489128 | Screw (Replaces: Y705026) | 1 |
|
$ 773.97 | ||||
| 13 | Y707664 | Washer | 1 |
|
- | ||||
| 14 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 15 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 16 | 708929 | Plate, Rock | 1 |
|
- | ||||
| 17 | 700819 | Support, Rock Plate | 1 |
|
$ 71.81 |
