SELECT A DIAGRAM

01 - Cover

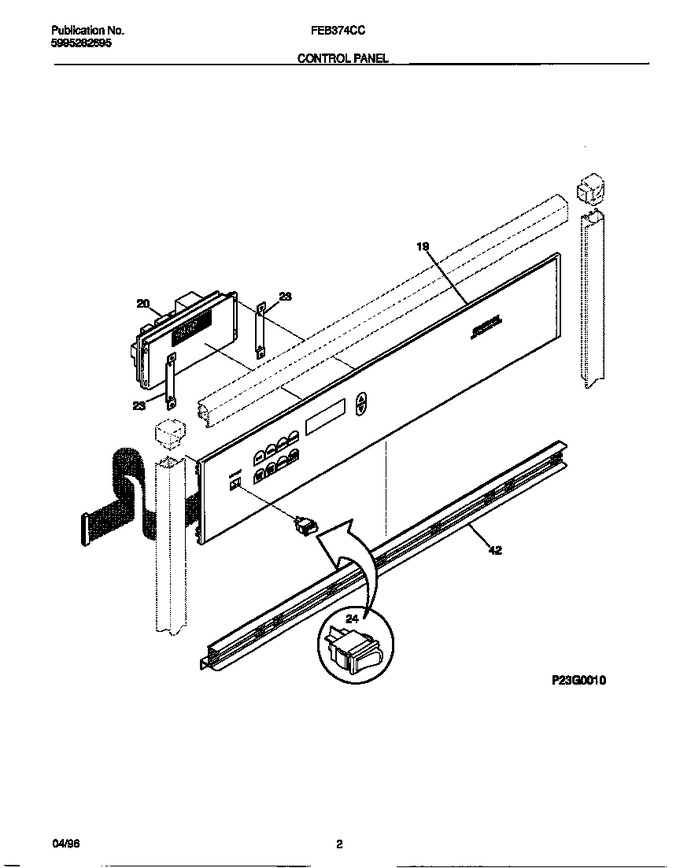

02 - Control Panel


03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318030109		Panel-control, White		Appelez-nous	-
23	5303311211		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
42	318027401		Trim-vent, White		Appelez-nous	-
*05800	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*05801	5303300265		Screw, 8-18 X 1/2				$ 15.17
*05802	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
*05803	5303300414		Spacer, Cork & Rubber				$ 13.18
20A	5303311210		Clock/timer, Eoc		Appelez-nous	-
20B	5303308450		Screw, 8 X 3/8, Clock/door (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
