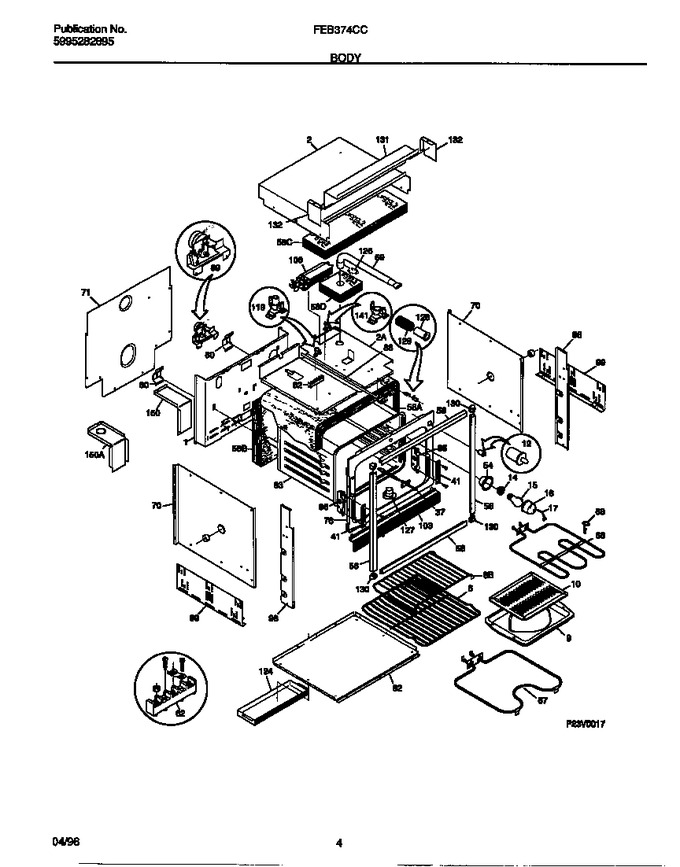

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303310527 | Back-main |
|
- | |||||
| 2 | 318071700 | Shield-oven Top |
|
- | |||||
| 2 | 318102100 | Shield-oven Top |
|
- | |||||
| 6 | 318025314 | Shelf-oven (Replaces: 318025400) |
|
Immediately | $ 148.70 | ||||
| 6 | 318025314 | Rack-oven (Replaces: 5303310522) |
|
Immediately | $ 148.70 | ||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 5303311157 | Switch-door |
|
- | |||||
| 14 | 316116400 | Socket-light/lamp, Oven (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens |
|
- | |||||
| 37 | 5303208888 | Probe-oven Temp |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 318083502 | Trim-bodyside, Almond, (4) |
|
- | |||||
| 58 | 5303311220 | Insulation,oven Vent |
|
- | |||||
| 58 | 5303310538 | Insulation, Oven Wrapper |
|
- | |||||
| 58 | 5303310539 | Insulation, Oven Back |
|
- | |||||
| 58 | 5303311233 | Insulation, Oven Door/top |
|
- | |||||
| 59 | 318072504 | Tube-oven Vent |
|
- | |||||
| 66 | 318255605 | Element-broil (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 67 | 318255006 | Element-bake (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| 68 | 5303307563 | Support-element |
|
- | |||||
| 70 | 5303300142 | Shield-insulation |
|
- | |||||
| 71 | 318071200 | Shield-wire |
|
- | |||||
| 76 | 318056202 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 82 | 318072300 | Shield, Oven Bottom |
|
- | |||||
| 83 | 318089600 | Liner-oven Assy |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 88 | 5303311222 | Rod-latch |
|
$ 129.19 | |||||
| 89 | 5303311223 | Motor-latch/lock |
|
- | |||||
| 99 | 318055420 | Support-adjustable |
|
$ 44.73 | |||||
| 103 | 318028502 | Trim-base, Almond |
|
- | |||||
| 108 | 318073001 | Motor-fan |
|
- | |||||
| 119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| 124 | 318076901 | Box-vent |
|
- | |||||
| 126 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 130 | 318070802 | End Cap-trim, Almond |
|
- | |||||
| 131 | 318102300 | Cover-control Housing |
|
- | |||||
| 141 | 318005000 | Thermostat-safety |
|
- | |||||
| 150 | 318072205 | Bracket-support, Rh |
|
$ 72.35 | |||||
| 150 | 318072204 | Bracket-support, Lh |
|
- | |||||
| *05804 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *05805 | 131202300 | Screw, 8 X 5/8, Spark Module (Replaces: 3131048) |
|
Immediately | $ 13.46 | ||||
| *05806 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *05807 | 5303311528 | Screw, Oval Hd, 6-20 X 5/8, Black |
|
- | |||||
| *05808 | 08007817 | Spacer, (2) |
|
- | |||||
| *05809 | 318078500 | Box & Wires Assy |
|
- | |||||
| 127A | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 127B | 5303311195 | Gasket, Adapter Assy (not Illustrated) |
|
- | |||||
| 132A | 318101800 | End-cover,control Hsg ,rh |
|
- | |||||
| 132B | 318101801 | End-cover,control Hsg ,lh |
|
- | |||||
| 62A | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 62B | 08002848 | Screw, 10-24 X 29/32, Terminal Block (not Illustrated) |
|
- | |||||
| 98A | 318029201 | Trim-side, Inner, Rh |
|
- | |||||
| 98B | 318029203 | Trim-side, Inner, Lh |
|
- |
