New Model Search:

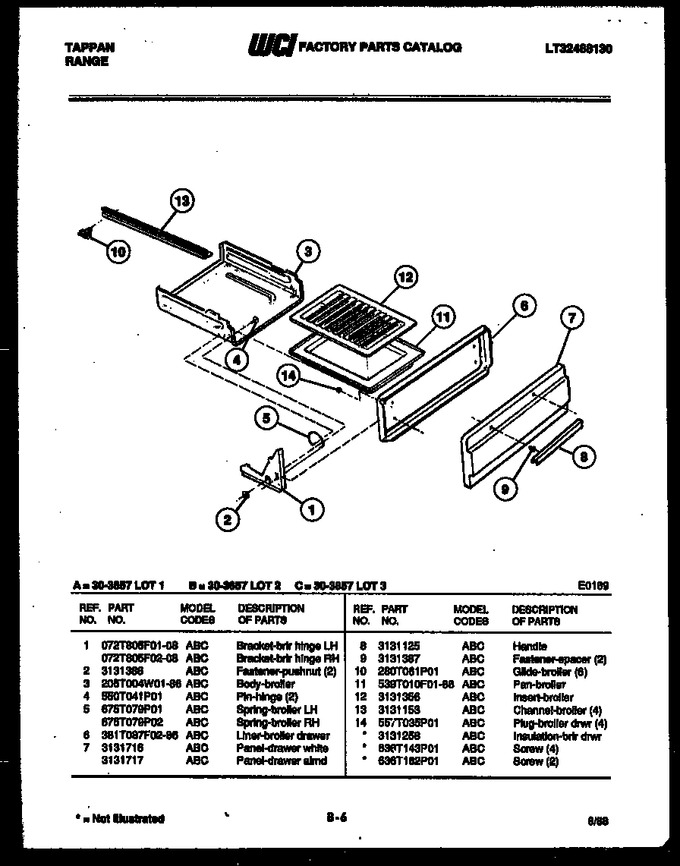

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 072T805F01-08 | Bracket, Broiler Hinge |
|
- | |||||
| 2 | 3131386 | Fastener, Push Nut (2) |
|
- | |||||
| 3 | 205T004W01-86 | Body, Broiler |
|
- | |||||
| 4 | 550T041P01 | Pin, Hinge (2) |
|
- | |||||
| 5 | 675T079P01 | Spring-broiler Lh |
|
- | |||||
| 6 | 381T087F02-86 | Liner (broiler Drawer) |
|
- | |||||
| 7 | 3131717 | Panel-drawer Almd |
|
- | |||||
| 8 | 3131125 | Handle |
|
- | |||||
| 9 | 3131387 | Fastener-spacer (2) |
|
- | |||||
| 10 | 280T061P01 | Glide, Broiler (6) |
|
- | |||||
| 11 | 539T010F01-86 | Pan, Broiler |
|
- | |||||
| 12 | 3131356 | Insert-broiler |
|
- | |||||
| 13 | 3131153 | Channel, Broiler (4) |
|
- | |||||
| 14 | 557T035P01 | Plug-broiler Drwr (4) |
|
- | |||||
| *13109 | 636T162P01 | Screw (2) |
|
- | |||||
| *13109 | 636T143P01 | Screw |
|
- | |||||
| *13109 | 3131258 | Insulation-brlr Drwr |
|
- | |||||
| 1A | 072T805F02-08 | Bracket, Broiler Hinge |
|
- | |||||
| 5A | 675T079P02 | Spring-broiler Rh |
|
- |
