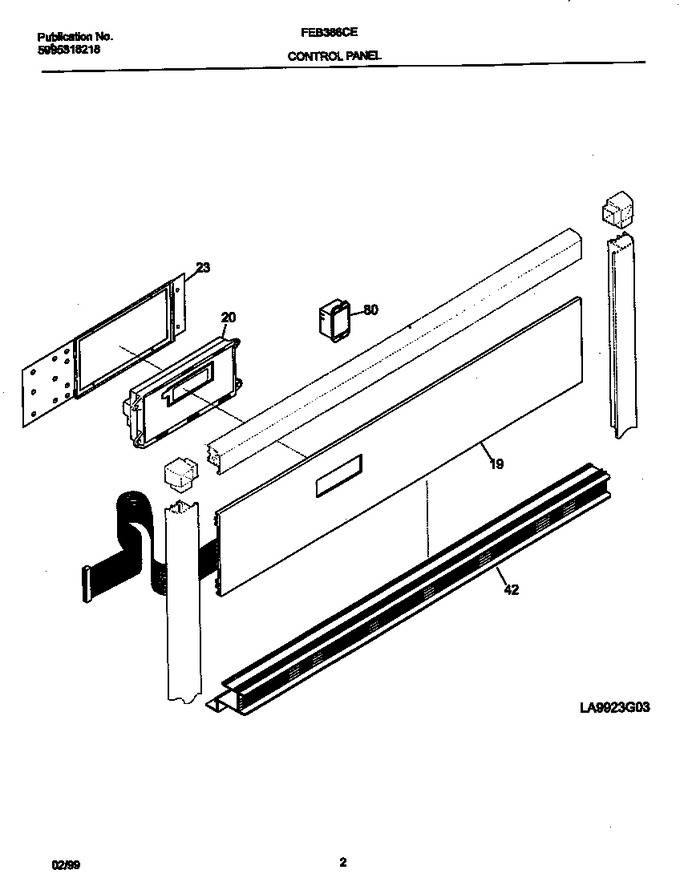

02 - Control Panel


03 - Body


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318030117		Panel-control, Black		Appelez-nous	-
20	318010900		Clock/timer		Appelez-nous	-
23	318111602		Bracket-timer		Appelez-nous	-
42	318027409		Trim-vent, Black		Appelez-nous	-
80	318111500		Relay		Appelez-nous	-
*52280	5303300265		Screw, 8-18 X 1/2				$ 15.17
*52281	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*52282	3201861		Screw, 6 X 3/8				$ 0.76
*52283	5303300414		Spacer, Cork & Rubber				$ 13.18
*52284	5303302745		Screw <10-16x-1-1/8>				$ 8.35
