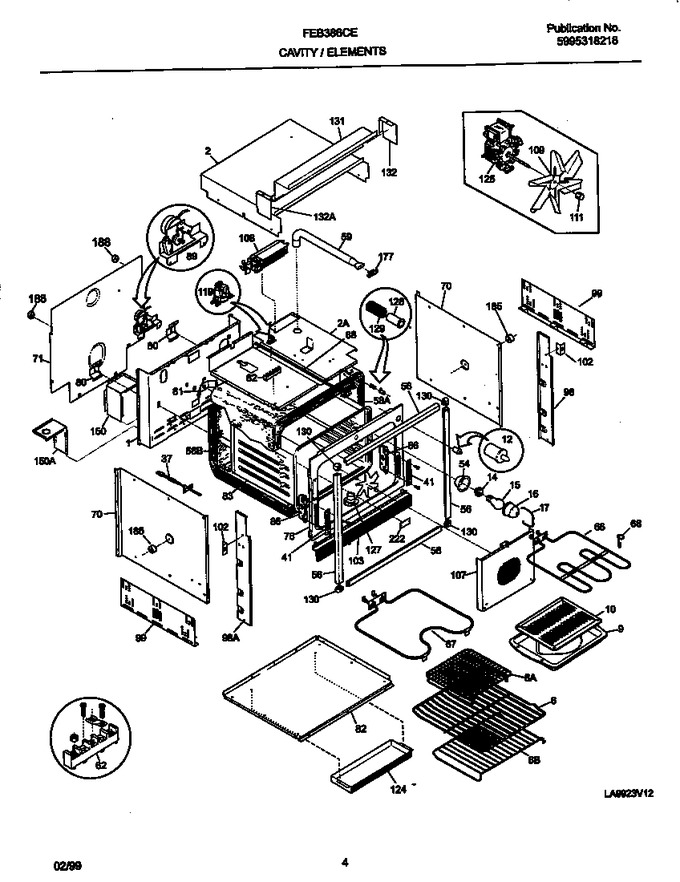

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Body
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303310527 | Back-main |
|
- | |||||
| 2 | 318071700 | Shield-oven Top |
|
- | |||||
| 2 | 318102100 | Shield-oven Top |
|
- | |||||
| 6 | 318025314 | Shelf-oven (Replaces: 318025400) |
|
Immediately | $ 148.70 | ||||
| 6 | 318025314 | Rack-oven (Replaces: 5303310522) |
|
Immediately | $ 148.70 | ||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch-light (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 14 | 316116400 | Socket - Light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer-lens |
|
- | |||||
| 37 | 316217002 | Probe-oven Temp (Replaces: 316111201) |
|
Immediately | $ 61.23 | ||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-light |
|
- | |||||
| 56 | 318083502 | Trim-bodyside,almond |
|
- | |||||
| 58 | 5303310538 | Insulation-oven Bake |
|
- | |||||
| 58 | 5303310539 | Insulation |
|
- | |||||
| 59 | 318072504 | Tube-oven Front |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 66 | 318255605 | Element-broil (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 67 | 318255006 | Element-bake (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 70 | 5303300142 | Shield-insulation |
|
- | |||||
| 71 | 318071200 | Shield-wire |
|
- | |||||
| 76 | 318056202 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 82 | 318072300 | Shield |
|
- | |||||
| 83 | 318089608 | Liner-oven Assy |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 88 | 5303311222 | Rod-latch |
|
$ 129.19 | |||||
| 89 | 5304404899 | Motor-latch |
|
- | |||||
| 98 | 318029203 | Trim-side,lh |
|
- | |||||
| 98 | 318029201 | Trim-side,rh |
|
- | |||||
| 99 | 318055420 | Support-adjustable |
|
$ 44.73 | |||||
| 102 | 318090900 | Support-fixation |
|
- | |||||
| 103 | 318028502 | Trim-base, Almond |
|
- | |||||
| 108 | 318073001 | Motor-fan |
|
- | |||||
| 119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| 124 | 318076903 | Box-vent |
|
- | |||||
| 127 | 318317100 | Adaptor Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 130 | 318070802 | End Cap-trim, Almond |
|
- | |||||
| 131 | 318102301 | Cover-control Housing |
|
- | |||||
| 132 | 318101801 | End-cover, Lh |
|
- | |||||
| 132 | 318101800 | End-cover, Rh |
|
- | |||||
| 150 | 318072205 | Bracket-support, Rh |
|
$ 72.35 | |||||
| 150 | 318072204 | Bracket-support, Lh |
|
- | |||||
| 177 | 318053800 | Gasket Vent |
|
- | |||||
| 185 | 318531800 | Spacer-oven Shield (Replaces: 318014700) |
|
$ 12.76 | |||||
| 188 | 08007817 | Spacer-rear Wall |
|
- | |||||
| *52285 | 318120702 | Switch-latch |
|
$ 111.67 | |||||
| *52286 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *52287 | 3015722 | Clip-wire |
|
- | |||||
| *52288 | 5303300265 | Screw-control Panel |
|
$ 15.17 | |||||
| *52289 | 5303308449 | Fastener |
|
- | |||||
| *52290 | 5303323136 | Screw-ground |
|
- | |||||
| *52291 | 5303323139 | Screw,10-24 X 29/32 |
|
$ 13.46 | |||||
| *52292 | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| *52293 | 5303324184 | Screw-8 X 5/16 |
|
Immediately | $ 14.18 | ||||
| *52294 | 5303323137 | Screw,10-32 X 17/32 |
|
$ 11.88 | |||||
| *52295 | 5308007939 | Plug, Door Liner |
|
- | |||||
| *52296 | 318078511 | Box & Wire Assy |
|
- | |||||
| *52297 | 3051807 | Button Plug |
|
- | |||||
| *52298 | 5303302745 | Screw <10-16x-1-1/8> |
|
$ 8.35 |
