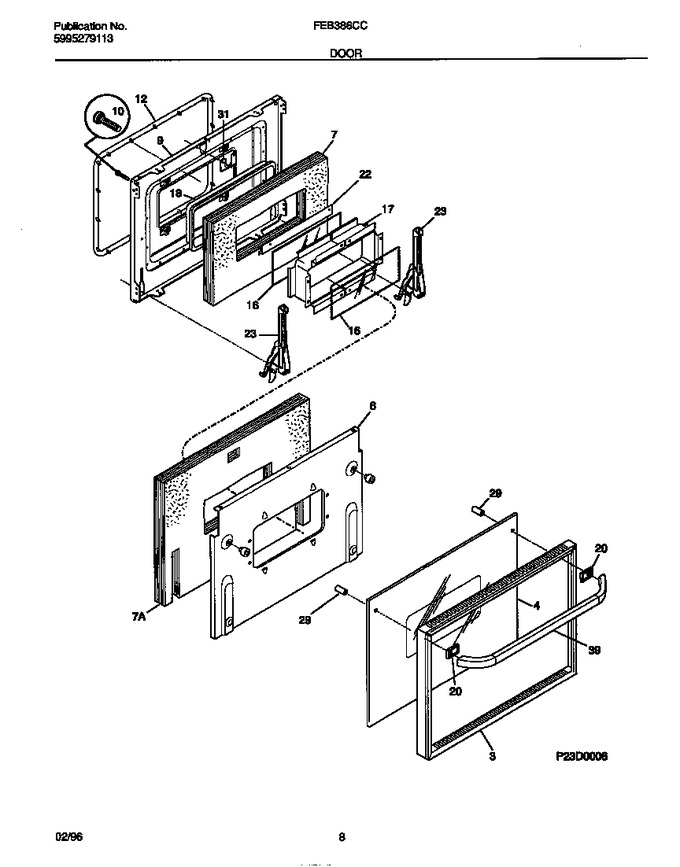

04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026700		Trim-oven Door, Black		Appelez-nous	-
4	318041300		Glass-oven Door, Black, Outer		Appelez-nous	-
6	318056801		Baffle-door		Appelez-nous	-
7	5303311233		Insulation, Oven Door		Appelez-nous	-
7	5303310532		Insulation-door		Appelez-nous	-
9	318048602		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle				$ 12.71
12	318053103		Seal-oven Door   (Replaces: 5303311152)			Immediately	$ 150.03
16	5303310533		Glass-oven Door, Heat Barrier				$ 220.55
17	5303310534		Spacer-glass		Appelez-nous	-
18	5303310531		Seal-rope		Appelez-nous	-
20	5303300175		Spacer-handle,black		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
31	318065100		Latch-door		Appelez-nous	-
39	318040406		Handle-door, Black, Oven		Appelez-nous	-
*25968	3202113		Button, Plug		Appelez-nous	-
*25969	5303300414		Spacer, Cork & Rubber				$ 13.18
*25970	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*25971	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*25972	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*25973	5303300265		Screw, 8-18 X 1/2				$ 15.17
23A	5303311259		Hinge,oven Door ,(2)		Appelez-nous	-
23B	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
