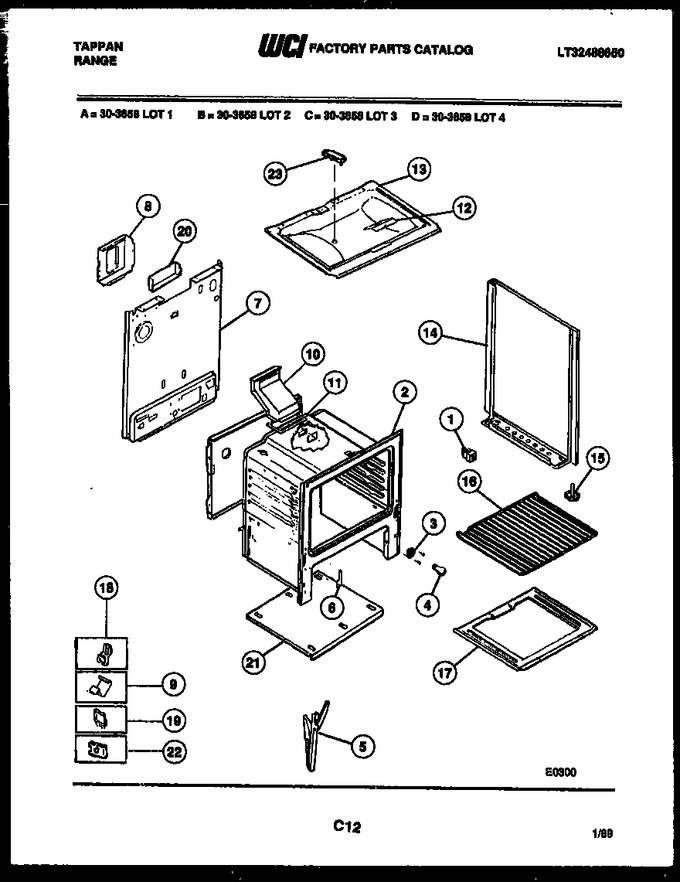

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	665T188P02		Spacer, Bodyside (8)		Appelez-nous	-
3	662T042P01		Socket-oven Light		Appelez-nous	-
4	374T018P05		Light Bulb		Appelez-nous	-
5	3131569		Channel-dr Hinge (2)		Appelez-nous	-
6	3131570		Cover-dr Hinge (2)				$ 7.35
7	3131567		Back, Main		Appelez-nous	-
8	655T421F02-18		Shield-rear Wall		Appelez-nous	-
9	145T130P01		Clip, Wire		Appelez-nous	-
10	3131904		Flue		Appelez-nous	-
11	3131355		Flue-gasket		Appelez-nous	-
12	3131101		Cover, Plate		Appelez-nous	-
13	095T030F02-86		Burner Box		Appelez-nous	-
14	3131227		Panel-bodyside Rh (white)		Appelez-nous	-
15	636M004P01		Screw, Level (4)		Appelez-nous	-
16	3131973		Rack, Oven (2)		Appelez-nous	-
17	058T036F02-86		Bottom, Oven		Appelez-nous	-
18	145T025P01		Clip-thermo Bulb				$ 1.76
19	241T047P02		Fastener, Wire		Appelez-nous	-
20	3131348		Shield-flue		Appelez-nous	-
21	3131180		Base, Broil		Appelez-nous	-
22	241T017P235		Clip		Appelez-nous	-
23	3015371		Cover-burner Box		Appelez-nous	-
24	3131548		Cover-front Main		Appelez-nous	-
*20560	316282700		Screw Oven Btm (2)   (Replaces: 3131732)				$ 9.93
*20560	241T017P255		Fastener, Power Cord		Appelez-nous	-
14A	3131257		Panel-bodyside Lh (white)		Appelez-nous	-
17A	3131201		Insulation-wrap (non-illustrated)		Appelez-nous	-
17B	3131246		Insulation Back (non-illustrated)		Appelez-nous	-
18A	5304534000		Cord, Power (non-illustrated)   (Replaces: 3131425)			Immediately	$ 33.37
20A	3131903		Bumper				$ 55.36
20B	694T092F01		Support-oven Btm. (2)		Appelez-nous	-
21A	554T388F02		Plate, Oven Light (non-illustrated)		Appelez-nous	-
21B	3131244		Cover-power Cord, (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
