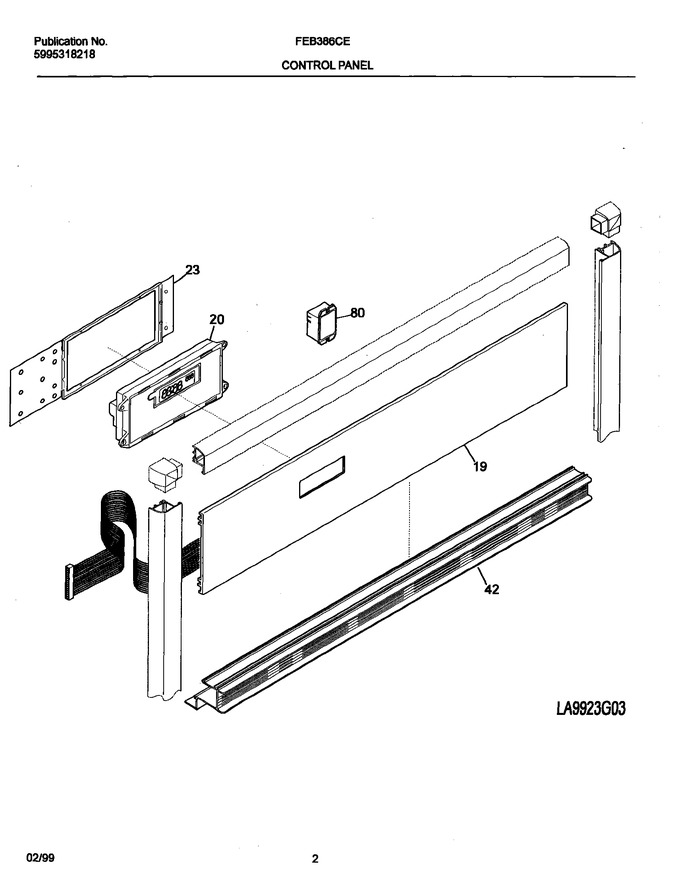

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 318030114 | Panel-control,black |
|
- | |||||
| 23 | 318111602 | Bracket-timer |
|
- | |||||
| 42 | 318027409 | Trim-vent, Black |
|
- | |||||
| 80 | 318111500 | Relay |
|
- | |||||
| F20 | 318010700CP | Clock/timer (Replaces: 318010700) |
|
- | |||||
| NI | 3201861 | Screw, 6 X 3/8 |
|
$ 0.76 |
