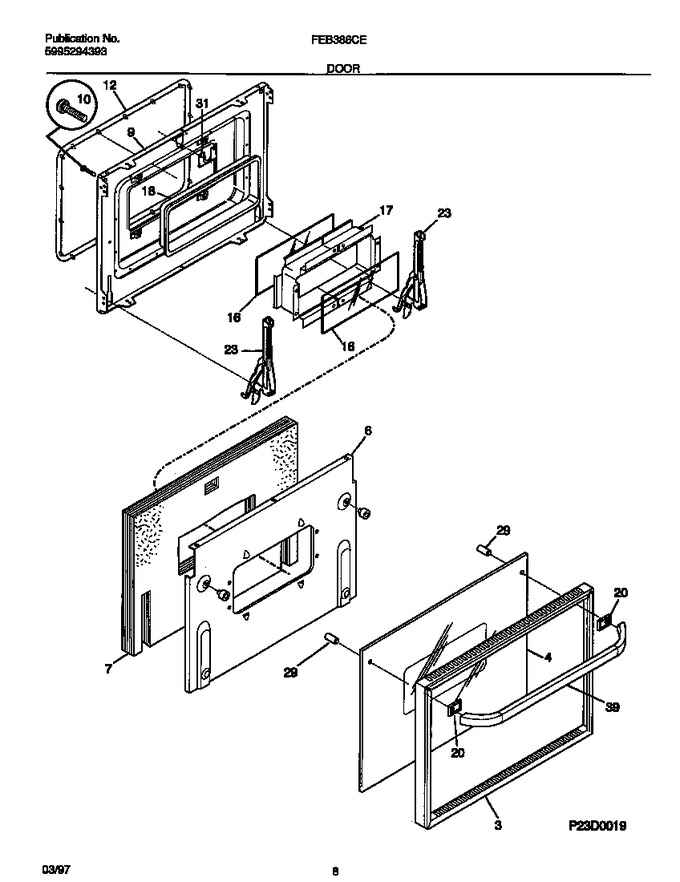

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026125		Trim-oven Door,white		Appelez-nous	-
4	318041304		Glass-oven Door,white ,outer		Appelez-nous	-
6	318056811		Shield-air Wash		Appelez-nous	-
7	318106001		Insulation-door		Appelez-nous	-
9	318048606		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle				$ 12.71
12	318053103		Seal-oven Door   (Replaces: 5303311152)			Immediately	$ 150.03
16	318041603		Glass-oven Door,inner ,(2)				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
23	5303310506		Hinge-oven Door,assembly		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
31	318065100		Latch-door		Appelez-nous	-
39	316091111		Handle-door,white ,oven		Appelez-nous	-
*41256	5303300265		Screw, 8-18 X 1/2				$ 15.17
*41257	5303300414		Spacer, Cork & Rubber				$ 13.18
*41258	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
