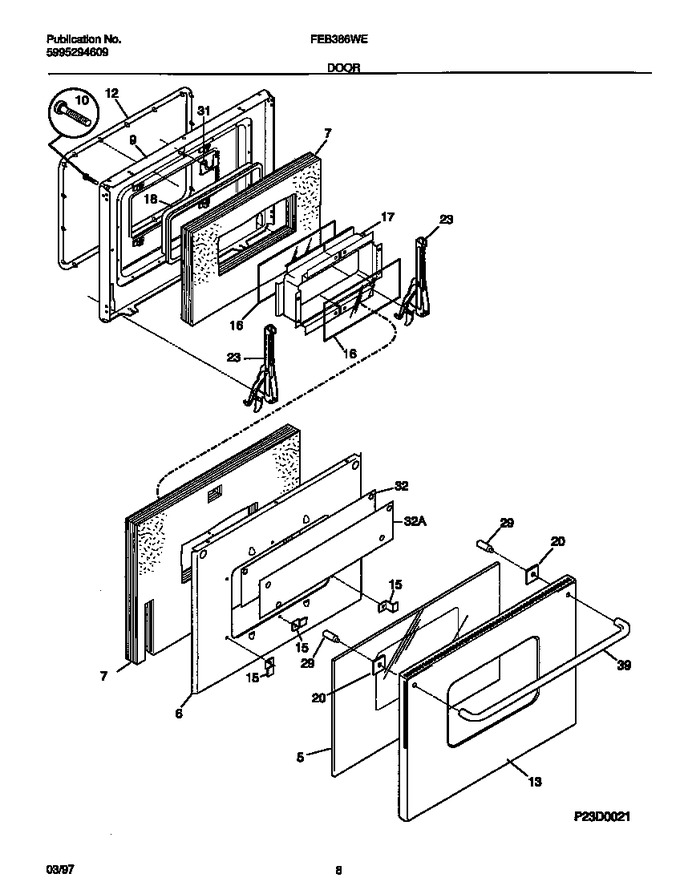

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 318041210 | Glass-oven Door, Black, Outer |
|
$ 199.55 | |||||
| 6 | 318056811 | Shield-air Wash |
|
- | |||||
| 7 | 318106001 | Insulation-door |
|
- | |||||
| 9 | 318048607 | Liner-oven Door |
|
- | |||||
| 10 | 5303316953 | Screw-handle, (2) |
|
- | |||||
| 12 | 318053103 | Seal-oven Door (Replaces: 5303311152) |
|
Immediately | $ 150.03 | ||||
| 13 | 318009210 | Panel-oven Door,stainless |
|
- | |||||
| 15 | 318091101 | Bracket-glass, (3) |
|
- | |||||
| 16 | 318041603 | Glass-oven Door,inner ,(2) |
|
$ 95.24 | |||||
| 17 | 318042102 | Spacer-glass |
|
- | |||||
| 18 | 318053001 | Seal-window |
|
- | |||||
| 20 | 318086020 | Spacer-handle,(2) |
|
- | |||||
| 23 | 5303320452 | Hinge |
|
- | |||||
| 29 | 318014400 | Spacer,door |
|
- | |||||
| 31 | 318065100 | Latch-door |
|
- | |||||
| 32 | 318056700 | Deflector, 4.5`` X 16.6`` |
|
- | |||||
| 32 | 318056701 | Deflector, 4`` X 18.43`` |
|
- | |||||
| 39 | 318039801 | Handle,door ,stainless Steel ,oven |
|
- | |||||
| *16575 | 5303300265 | Screw, 8-18 X 1/2 |
|
$ 15.17 | |||||
| *16576 | 5303300414 | Spacer, Cork & Rubber |
|
$ 13.18 | |||||
| *16577 | 5303307980 | Screw, 8-32 X 7/16 |
|
Immediately | $ 14.18 | ||||
| *16578 | 5303316982 | Tape, Seal, (3) |
|
- |
