SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Upper Body


04 - Lower Body


05 - Door

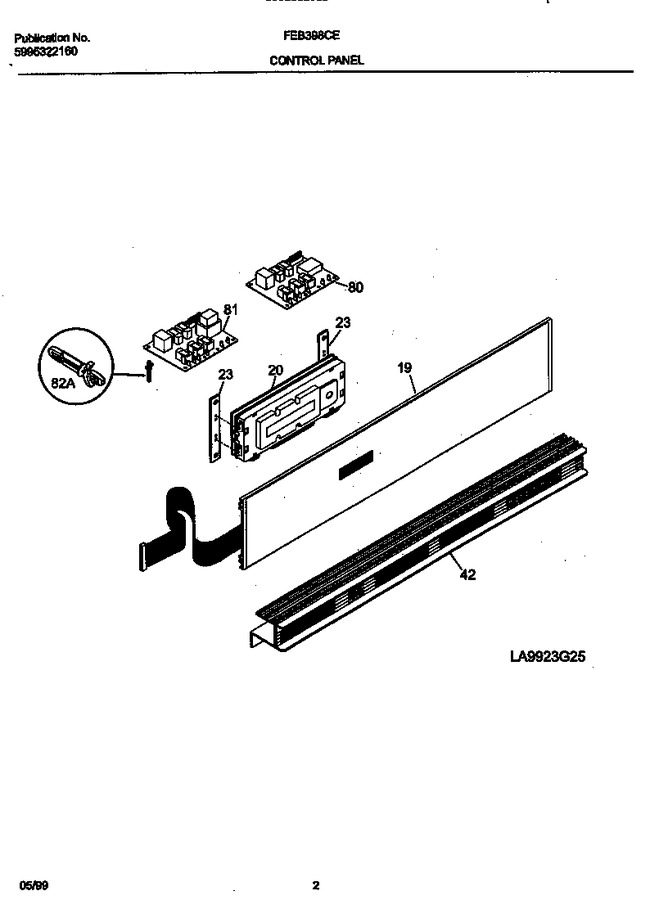

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318030111		Panel-control, Black		Appelez-nous	-
20	318010501		Clock/timer, Eoc				$ 666.75
23	318015110		Bracket-clock Mtg		Appelez-nous	-
42	318027410		Trim,vent ,black				$ 404.51
80	318022001		Board-relay			Immediately	$ 489.91
81	318022002		Board-relay, Transformer				$ 482.74
82	5303317199		Support, Snap-in, (3)				$ 36.75
*19480	3201861		Screw, 6 X 3/8				$ 0.76
*19481	5303300414		Spacer, Cork & Rubber				$ 13.18

    View Diagram in Separate Window       Print Part List
