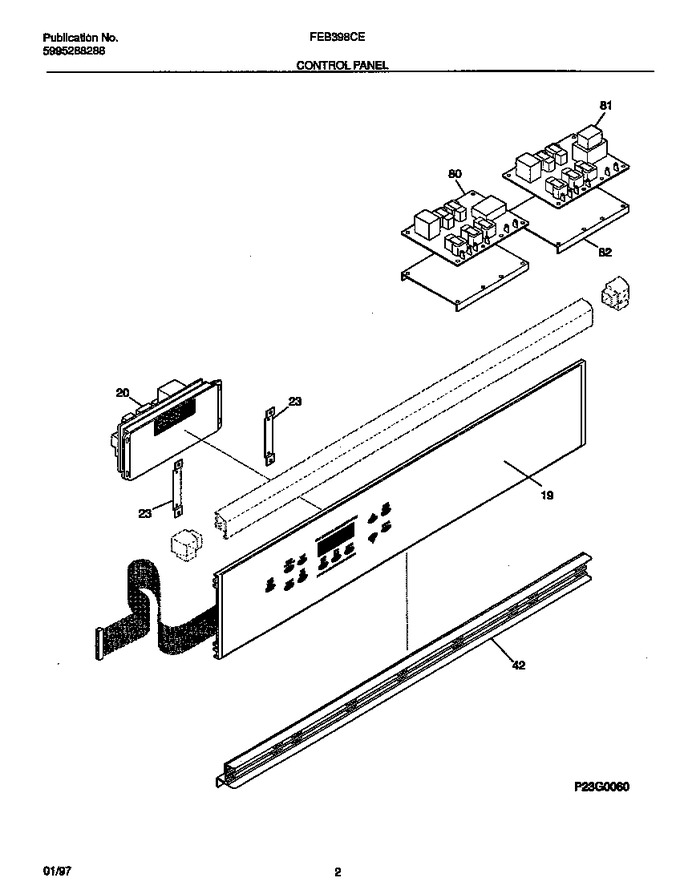

02 - Control Panel


03 - Lower Body


05 - Upper Body


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318030113		Panel-control, Almond		Appelez-nous	-
42	318027406		Trim-vent, Almond		Appelez-nous	-
80	318022001		Board-relay			Immediately	$ 489.91
81	318022002		Board-relay, Transformer				$ 482.74
*85480	5303317199		Support, Snap-in, (16)				$ 36.75
*85481	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*85482	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
20A	318010501		Clock/timer, Eoc				$ 666.75
20B	5303288566		Screw-clock (not Illustrated)   (Replaces: 5303320848)				$ 2.12
23A	318015110		Bracket-clock Mtg		Appelez-nous	-
23B	5303300265		Screw, 8-18 X 1/2 (not Illustrated)				$ 15.17
