SELECT A DIAGRAM

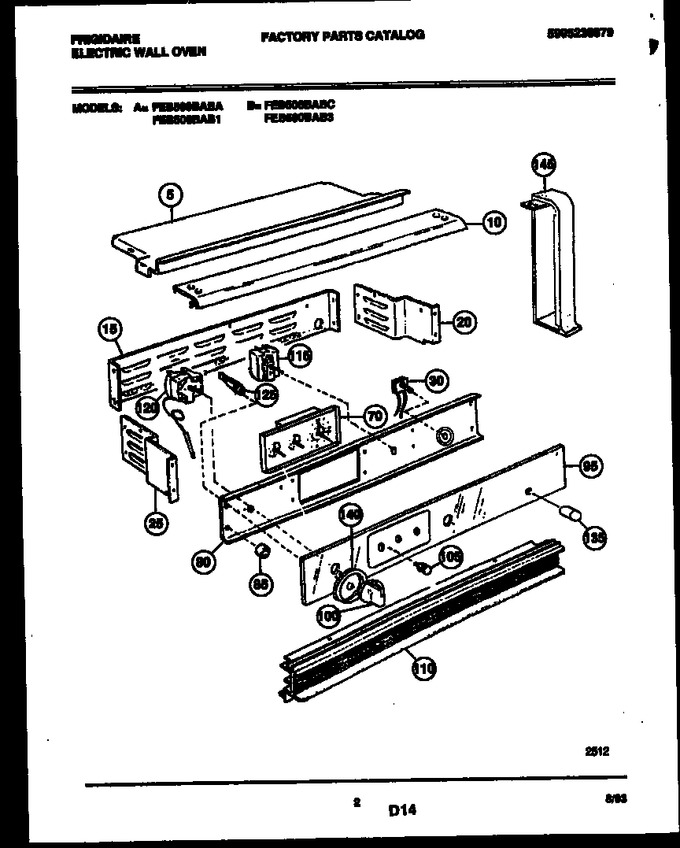

02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5303298955 | Cover-control Housing |
|
- | |||||
| 10 | 5303300408 | Trim-top Vent |
|
- | |||||
| 15 | 5303300409 | Rear Panel-housing Control |
|
- | |||||
| 20 | 5303298947 | End Hsg Control-rh |
|
- | |||||
| 25 | 5303298948 | End Hsg Control-lh |
|
- | |||||
| 30 | 5303300410 | Light Switch |
|
- | |||||
| 70 | 5303298961 | Clock |
|
- | |||||
| 80 | 5303299464 | Plate-instrument Mtg |
|
- | |||||
| 85 | 3202093 | Bumper (4) |
|
- | |||||
| 95 | 5303299470 | Glass-control Panel |
|
- | |||||
| 100 | 5303297395 | Knob |
|
- | |||||
| 105 | 316029000 | Knob-timer |
|
- | |||||
| 110 | 5303298950 | Trim-center Vent |
|
- | |||||
| 115 | 5303299471 | Selector |
|
- | |||||
| 120 | 5303300413 | Oven Control |
|
- | |||||
| 125 | 5303299473 | Pilot Light |
|
- | |||||
| 135 | 5303299474 | Knob-light Switch |
|
- | |||||
| 140 | 5303299475 | Escutcheon |
|
- | |||||
| 145 | 5303299476 | End-backsplash-rh |
|
- | |||||
| *83189 | 3202088 | Bracket-clock |
|
- | |||||
| *83189 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| *83189 | 318003605 | Switch - Thermal Cutout (Replaces: 3202388) |
|
$ 178.61 | |||||
| 145A | 5303299477 | End-backsplash-lh |
|
- | |||||
| 30A | 5303300411 | Bezel-switch (non-illustrated) |
|
- |
