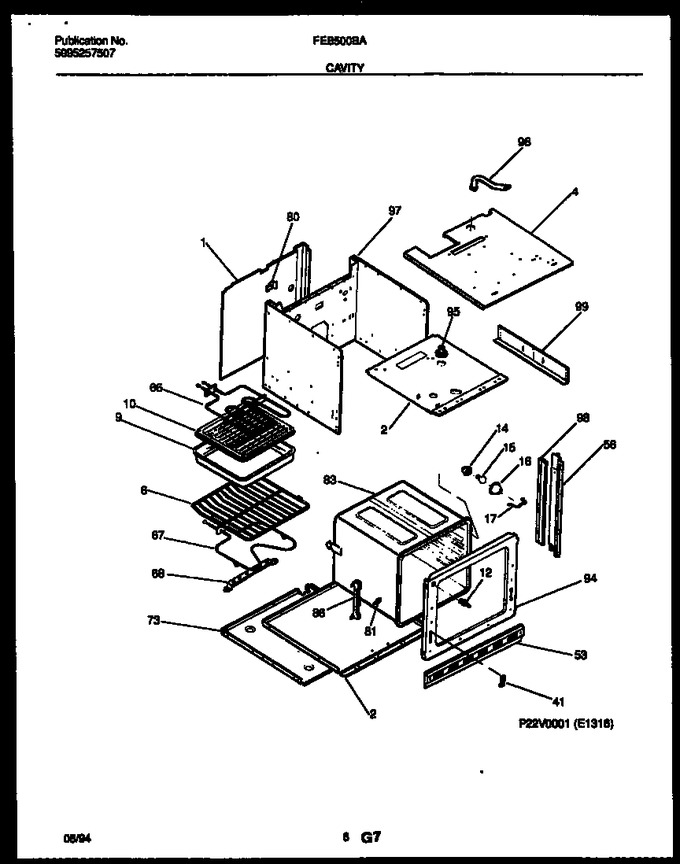

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303305037 | Back-main |
|
- | |||||
| 2 | 5303305035 | Shield-oven Top |
|
- | |||||
| 4 | 5303298946 | Wrapper-top |
|
- | |||||
| 6 | 318345216 | Rack-oven (Replaces: 5303296873) |
|
$ 103.90 | |||||
| 9 | 5303292159 | Pan-broiler |
|
- | |||||
| 10 | 5303296872 | Insert-broiler Pan |
|
- | |||||
| 12 | 5301314211 | Switch-oven Light |
|
$ 95.29 | |||||
| 14 | 08011171 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens |
|
- | |||||
| 41 | 3019063 | Retainer-door |
|
- | |||||
| 53 | 5303298954 | Trim-base |
|
- | |||||
| 56 | 5303298951 | Trim-side, (2) |
|
- | |||||
| 66 | 5303016247 | Element, Broil |
|
$ 223.97 | |||||
| 67 | 318255101 | Element, Bake (Replaces: 3202440) |
|
$ 185.70 | |||||
| 68 | 3016248 | Support, Element |
|
- | |||||
| 73 | 5303305036 | Wrapper-base |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 81 | 3201632 | Spacer-oven |
|
- | |||||
| 83 | 5303305022 | Liner-oven Assy |
|
- | |||||
| 86 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 94 | 5303296866 | Frame-front |
|
- | |||||
| 95 | 5303206498 | Vent Tube Assy |
|
- | |||||
| 96 | 5303300422 | Duct-oven Vent |
|
- | |||||
| 97 | 5303300423 | Wrapper |
|
- | |||||
| 98 | 5303298952 | Trim-side, Inner, Rh |
|
- | |||||
| 98 | 5303298953 | Trim-side, Inner, Lh |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| *10859 | 5303304702 | Insulation |
|
- | |||||
| *10859 | 5303304704 | Thermostat-safety |
|
- | |||||
| *10859 | 5303304703 | Insulation |
|
- | |||||
| *10859 | 5303300421 | Cover-capillary |
|
- | |||||
| *10859 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 |
