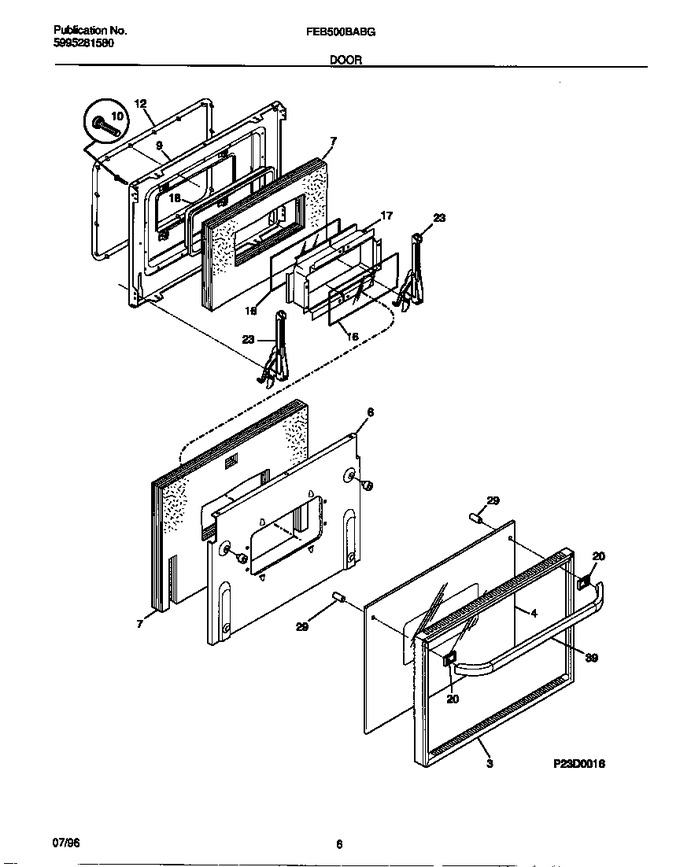

04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303212560		Trim-oven Door, Black		Appelez-nous	-
4	5303299478		Glass-oven Door, Black, Outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318048400		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle				$ 12.71
12	5303316768		Seal-oven Door		Appelez-nous	-
16	5303016336		Glass-oven Door, Heat Barrier		Appelez-nous	-
17	5303212864		Spacer-glass		Appelez-nous	-
18	3016338		Seal-rope				$ 43.20
20	5303300175		Spacer-handle,black		Appelez-nous	-
23	3202464		Hinge-oven Door		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	5303300415		Handle-door, Black, Oven		Appelez-nous	-
*10808	3202113		Button, Plug		Appelez-nous	-
*10809	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
*10810	5303300414		Spacer, Cork & Rubber				$ 13.18
*10811	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*10812	5303316982		Tape, Seal, (2)		Appelez-nous	-
