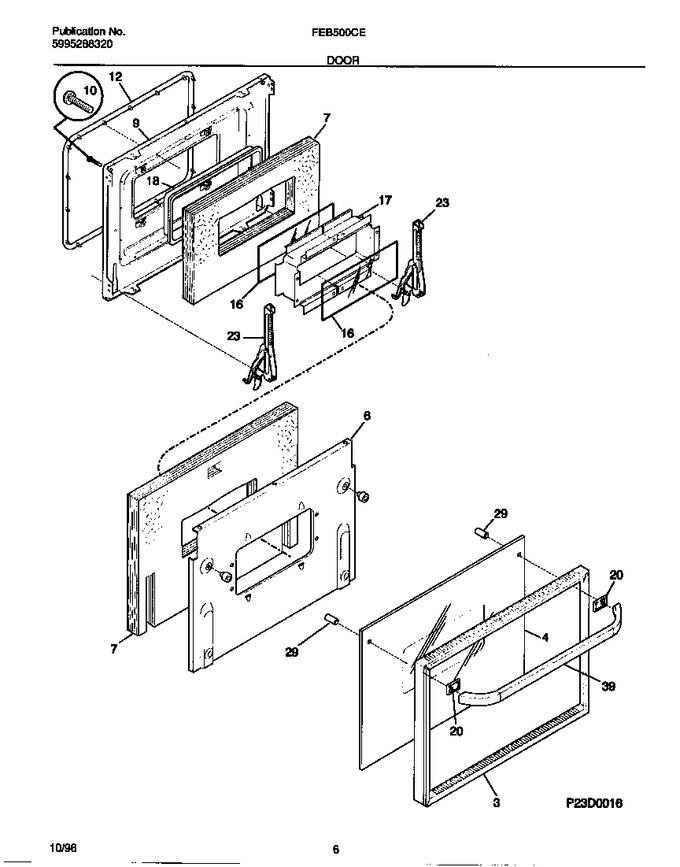

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026100		Trim-oven Door, White		Appelez-nous	-
4	5303302707		Glass-oven Door, White, Outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318048400		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle				$ 12.71
12	5303316768		Seal-oven Door		Appelez-nous	-
16	5303016336		Glass-oven Door, Heat Barrier		Appelez-nous	-
17	5303212864		Spacer-glass		Appelez-nous	-
18	3016338		Seal-rope				$ 43.20
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
23	3202464		Hinge-oven Door, Lower		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	316091104		Handle-door, White, Oven		Appelez-nous	-
*74892	3202113		Button, Plug		Appelez-nous	-
*74893	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
*74894	5303300414		Spacer, Cork & Rubber				$ 13.18
*74895	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*74896	5304414648		Screw, 10-24 X 1/4, Rail Mtg, Control Pnl   (Replaces: 5303308458)				$ 14.18
*74897	5303316982		Tape, Seal, (3)		Appelez-nous	-
