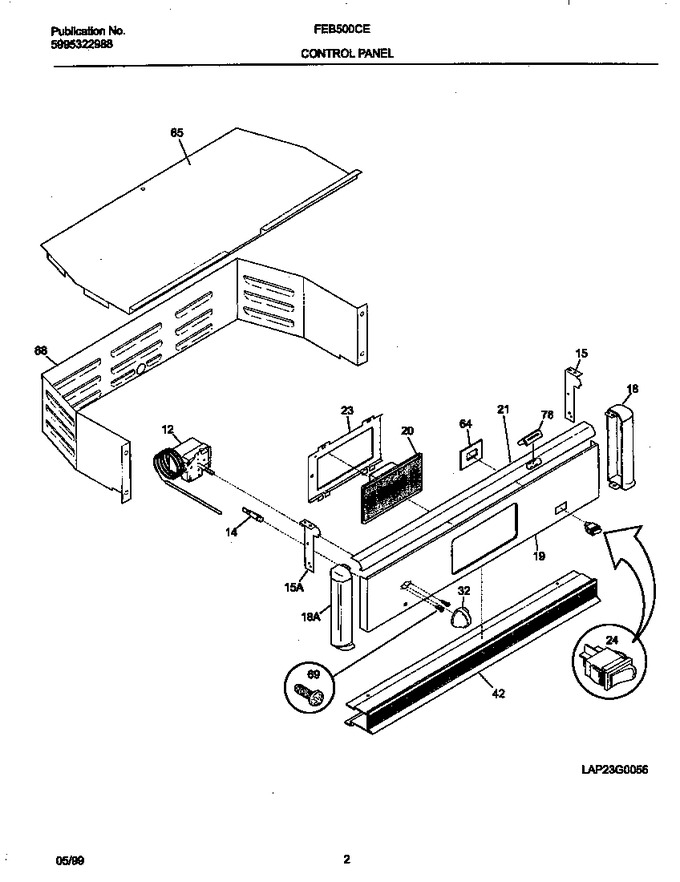

02 - Control Panel


03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	318058300		Thermostat-oven		Appelez-nous	-
14	5303320424		Light/lamp, Indicator, (3)		Appelez-nous	-
15	5303302286		Support-backguard, Rh		Appelez-nous	-
15	5303302287		Support-backguard, Lh		Appelez-nous	-
18	5303311209		End Cap, White, Lh		Appelez-nous	-
18	5303311208		End Cap, White, Rh		Appelez-nous	-
19	318129702		Panel-control, White		Appelez-nous	-
20	318013914		Clock-timer		Appelez-nous	-
21	5303320425		Trim-top, White		Appelez-nous	-
23	318015701		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
32	318017206		Knob-thermostat, White				$ 23.57
42	5303316649		Trim-vent, White		Appelez-nous	-
64	318112200		Mtg Rocker Switch		Appelez-nous	-
65	318038801		Cover-control Housing		Appelez-nous	-
68	5303302397		Housing,control		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
78	5303302394		Cover, Oven Vent, White		Appelez-nous	-
*24440	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*24441	5303316956		Screw,6-32 X 3/8 ,white ,(2)		Appelez-nous	-
